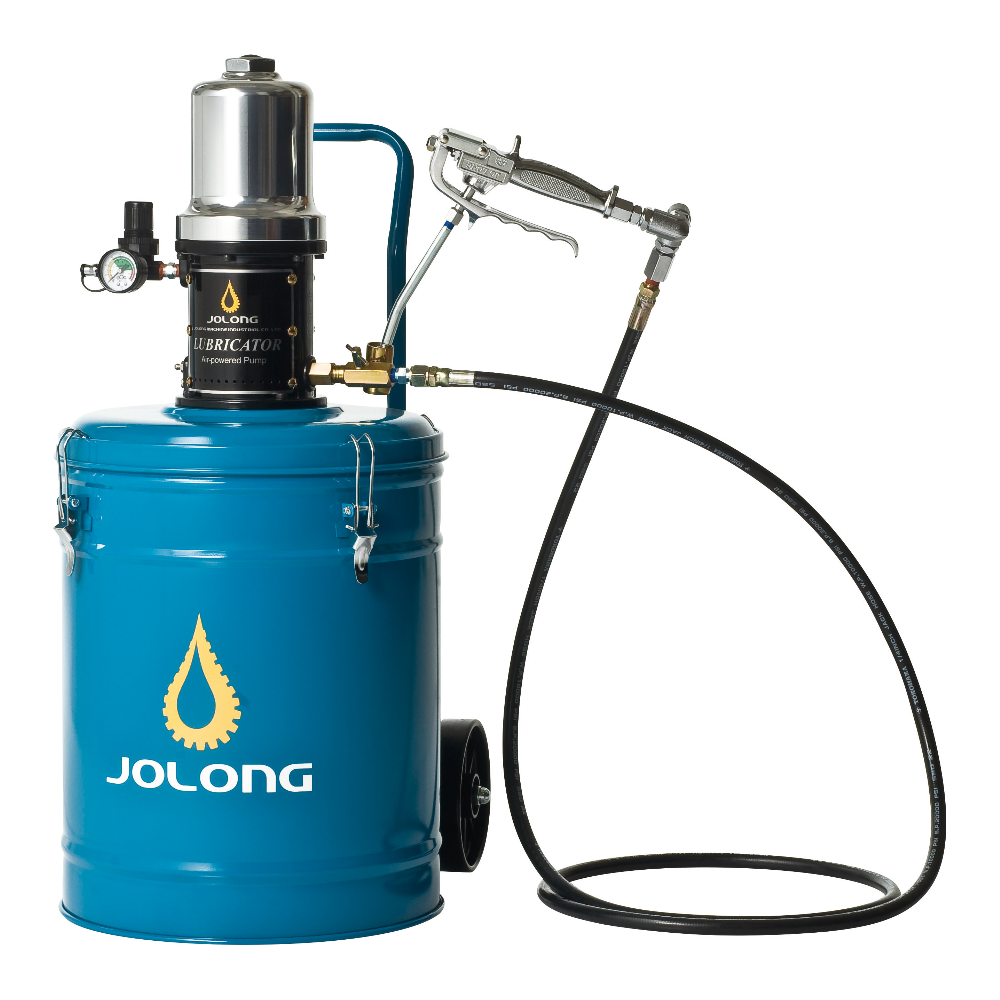

AIR OPERATED FLUID PUMP / GREASE PUMP LA101
Product Description
Feature
(1) It has two PP wheels and is suitable for outdoor use.
(2) Pump moves and oil suction are two separation system, it won't contaminating grease.
(3) Typically used in workshops, service stations, fleet maintenance, mining, agriculture, armed forces, construction, trains, etc.
(4) The pump is made of aluminum alloy by forging.
(5) The container has a capacity of 30 liters (inner diameter 350mm, inner height 430mm) and can accommodate 20 & 25 liter original containers and four-corner containers from various countries.
Usage
(1) General 00#~3# grease all can be infused into smoothly.
The grease grades commonly used in Taiwan are those of the National Lubricating Grease Institute (NLGI), founded in the United States. The grade refers to the grease's penetration value, or consistency, as determined by the NLGI. NLGI classifies consistency into nine grades, numbered from 000 to 6.
Penetration refers to the depth to which a standard cone penetrates a grease sample (held at 25°C) within 5 seconds, measured in 1/10 mm units. The main purpose of viscosity is to allow grease to adhere to the parts requiring lubrication.
A higher penetration indicates a softer grease, meaning lower viscosity; conversely, a lower penetration indicates a harder grease, meaning higher viscosity. Generally, industrially used greases are typically #00 to #3. However, with advancements in modern technology and to meet diverse lubrication needs, even greases with the same #00 rating may have different viscosities.
✅The key to determining this is the NLGI consistency grade of the lubricating oil.

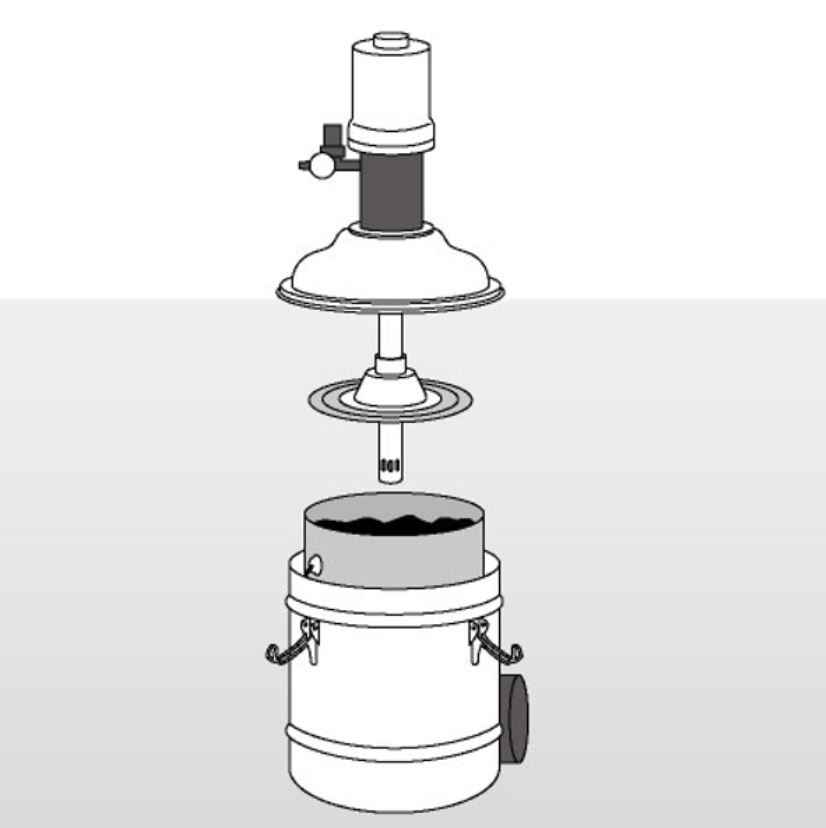

Proper use of the pressure plate ensures smooth oil extraction and prevents the pump from running dry.
✅NLGI #00, #0 (semi-flow, extremely soft): No need to use
The oil has good fluidity and can flow to the pump inlet on its own.
✅NLGI #1 (soft, paste): Add as needed depending on environmental conditions. Generally, it is not required.
Special Note: If operating in winter or low-temperature environments, the oil may harden due to temperature drop. It is recommended to install a pressure plate to maintain a stable oil supply.
✅NLGI #2 (Medium consistency): Must be used
This grade of oil has lost its fluidity to automatically flow to the suction inlet. Please be sure to install a pressure plate to avoid creating voids (air locks) that could cause pump malfunction.
✅NLGI #3 (High viscosity, firm texture): Requires increased pressure support.
If a regular pump is difficult to extract the material, it is recommended to use an HV series pressure pump, which uses a pneumatic cylinder to apply strong downward pressure.
✅Supporting solution: A 6KG weight can be added to the pressure plate for assistance.If you require extraction of high-viscosity oils, please contact our technical team directly.
(1)Without pressure plate. It will be hollow after sucking and also not easy to suck.

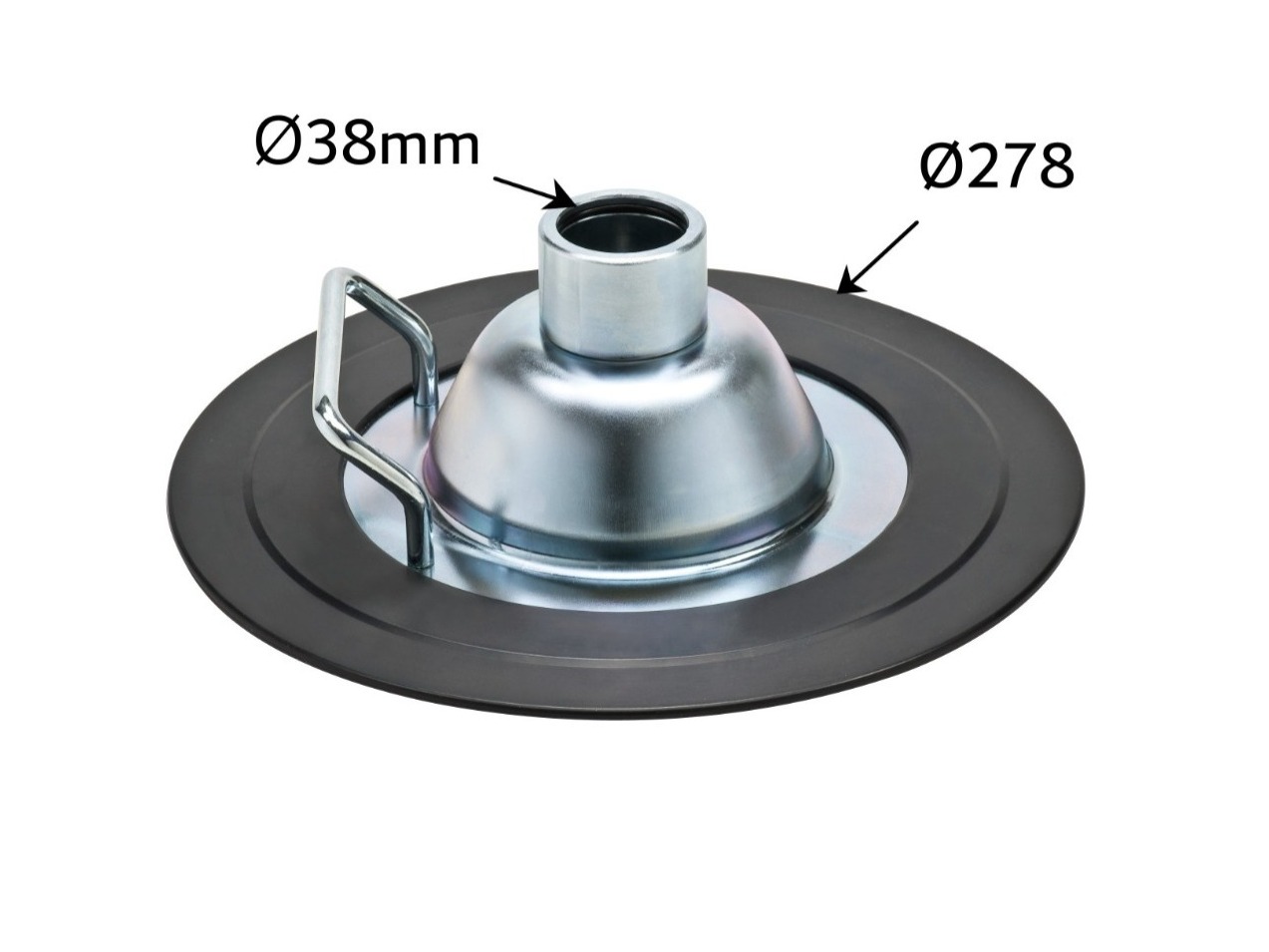

(2)A pressure plate is used. The grease can be sucked evenly and smoothly with follower plate.
JO LONG Co., Ltd. is established in 1976. For the earlier stage, we mainly produced professional machinery. Since 1991, we start to use our "JOLONG" trademark to produce lubricating equipment and repairing tool of automobile and motorcycle. For the past 30 years, we devote to provide good products to the industry; therefore, we obtain good reputation. Thanks for your constant support and kindness. We will continue developing related products based on the principle of best quality and service to improve the working efficiency against safe, convenient and good machinery.
Our quality policies are the quality is our number one priority, customer satisfaction and continuous improvement. Furthermore, we proceed each inspection against profession-based and data-based. We provide high quality and excellent performance product and consistent after-sales service to the domestic and international buyers and users.
Our production facilities are CNC lathes, CNC Machining centers, hydraulic press, professional, numerical and consistent production process. Our testing facilities are video measuring machine, electric microscope and others.
| Model | LA101 |
| Capacity | 20L |
| Air Input Pressure | 4 ~ 9 bar / 60 ~ 130 psi |
| Pressure Ratio | 45 : 1 |
| Grease Output Pressure | 180 ~ 405 bar / 2700 ~ 5850 psi |
| Deliver Rate | 9 g / cycle |
| Hose Length | 10 ft |
| N.W. | 18.5 kg |
| G.W. | 21 kg |
| CUFT | 5.3' |
Feature
(1) It has two PP wheels and is suitable for outdoor use.
(2) Pump moves and oil suction are two separation system, it won't contaminating grease.
(3) Typically used in workshops, service stations, fleet maintenance, mining, agriculture, armed forces, construction, trains, etc.
(4) The pump is made of aluminum alloy by forging.
(5) The container has a capacity of 30 liters (inner diameter 350mm, inner height 430mm) and can accommodate 20 & 25 liter original containers and four-corner containers from various countries.
Usage
(1) General 00#~3# grease all can be infused into smoothly.
The grease grades commonly used in Taiwan are those of the National Lubricating Grease Institute (NLGI), founded in the United States. The grade refers to the grease's penetration value, or consistency, as determined by the NLGI. NLGI classifies consistency into nine grades, numbered from 000 to 6.
Penetration refers to the depth to which a standard cone penetrates a grease sample (held at 25°C) within 5 seconds, measured in 1/10 mm units. The main purpose of viscosity is to allow grease to adhere to the parts requiring lubrication.
A higher penetration indicates a softer grease, meaning lower viscosity; conversely, a lower penetration indicates a harder grease, meaning higher viscosity. Generally, industrially used greases are typically #00 to #3. However, with advancements in modern technology and to meet diverse lubrication needs, even greases with the same #00 rating may have different viscosities.
✅The key to determining this is the NLGI consistency grade of the lubricating oil.
Proper use of the pressure plate ensures smooth oil extraction and prevents the pump from running dry.
✅NLGI #00, #0 (semi-flow, extremely soft): No need to use
The oil has good fluidity and can flow to the pump inlet on its own.
✅NLGI #1 (soft, paste): Add as needed depending on environmental conditions. Generally, it is not required.
Special Note: If operating in winter or low-temperature environments, the oil may harden due to temperature drop. It is recommended to install a pressure plate to maintain a stable oil supply.
✅NLGI #2 (Medium consistency): Must be used
This grade of oil has lost its fluidity to automatically flow to the suction inlet. Please be sure to install a pressure plate to avoid creating voids (air locks) that could cause pump malfunction.
✅NLGI #3 (High viscosity, firm texture): Requires increased pressure support.
If a regular pump is difficult to extract the material, it is recommended to use an HV series pressure pump, which uses a pneumatic cylinder to apply strong downward pressure.
✅Supporting solution: A 6KG weight can be added to the pressure plate for assistance.If you require extraction of high-viscosity oils, please contact our technical team directly.
(1)Without pressure plate. It will be hollow after sucking and also not easy to suck.
(2)A pressure plate is used. The grease can be sucked evenly and smoothly with follower plate.
JO LONG Co., Ltd. is established in 1976. For the earlier stage, we mainly produced professional machinery. Since 1991, we start to use our "JOLONG" trademark to produce lubricating equipment and repairing tool of automobile and motorcycle. For the past 30 years, we devote to provide good products to the industry; therefore, we obtain good reputation. Thanks for your constant support and kindness. We will continue developing related products based on the principle of best quality and service to improve the working efficiency against safe, convenient and good machinery.
Our quality policies are the quality is our number one priority, customer satisfaction and continuous improvement. Furthermore, we proceed each inspection against profession-based and data-based. We provide high quality and excellent performance product and consistent after-sales service to the domestic and international buyers and users.
Our production facilities are CNC lathes, CNC Machining centers, hydraulic press, professional, numerical and consistent production process. Our testing facilities are video measuring machine, electric microscope and others.
| Model | LA101 |
| Capacity | 20L |
| Air Input Pressure | 4 ~ 9 bar / 60 ~ 130 psi |
| Pressure Ratio | 45 : 1 |
| Grease Output Pressure | 180 ~ 405 bar / 2700 ~ 5850 psi |
| Deliver Rate | 9 g / cycle |
| Hose Length | 10 ft |
| N.W. | 18.5 kg |
| G.W. | 21 kg |
| CUFT | 5.3' |
