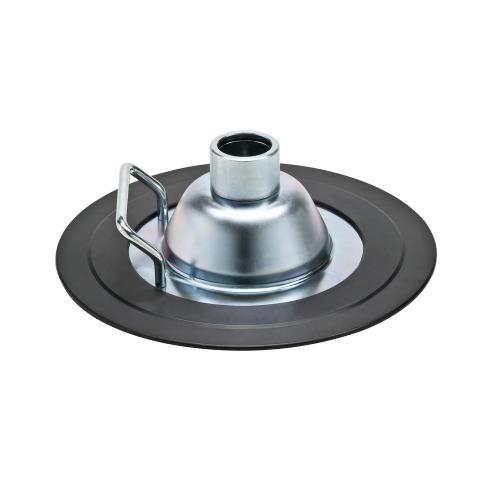

FOLLOWER PLATE FP101

Product Description

Suitable for SK/BW/LA 20 liter.

分享:

Product Detail
Specification

Feature

(1) Suitable for 20 liter (5 gallon) oil drums.

(2) Ensures even suction and smooth operation.

(3) Rubber outer diameter Ø278mm.

(4) Inner diameter of the central tube Ø38mm.

【Installation Diagram】

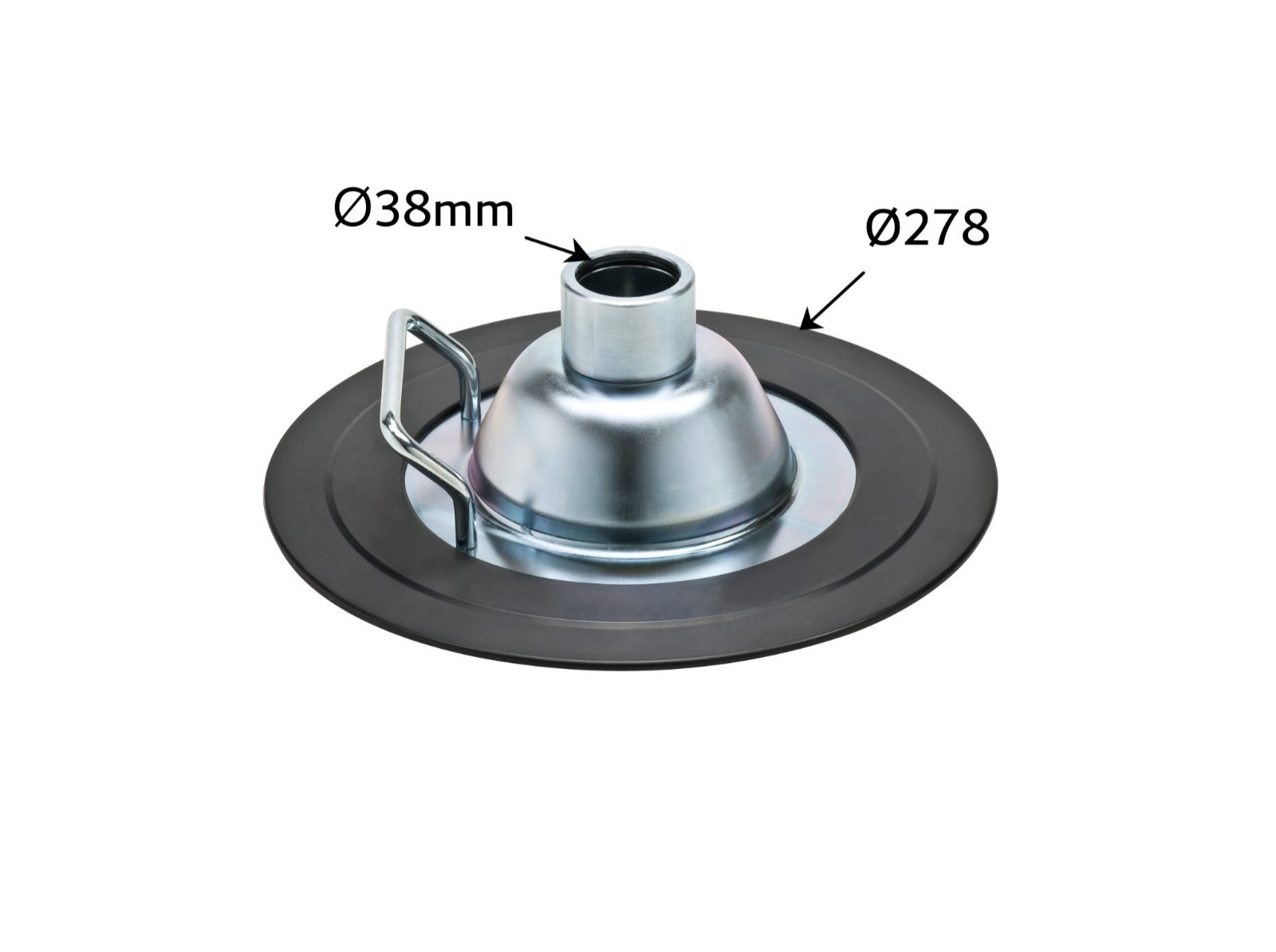

▲Dimensions

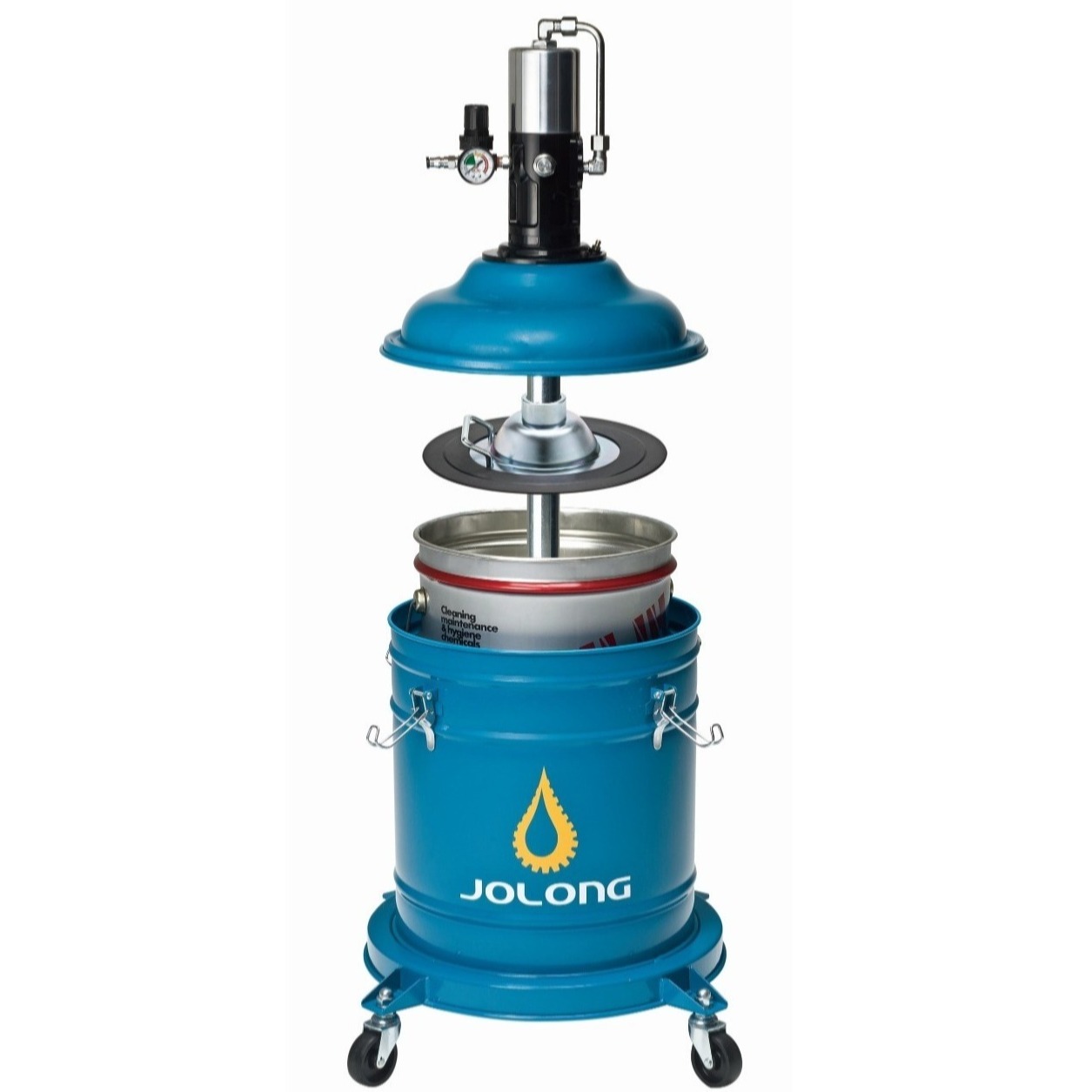

▲Installation Method




【Function Diagram】

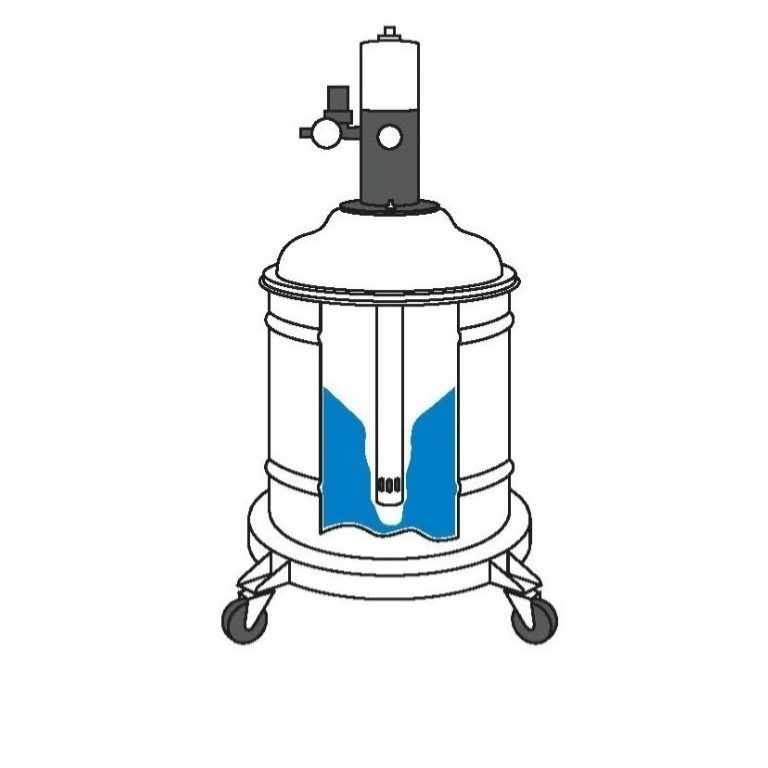

(1)Without pressure plate. It will be hollow after sucking and also not easy to suck.

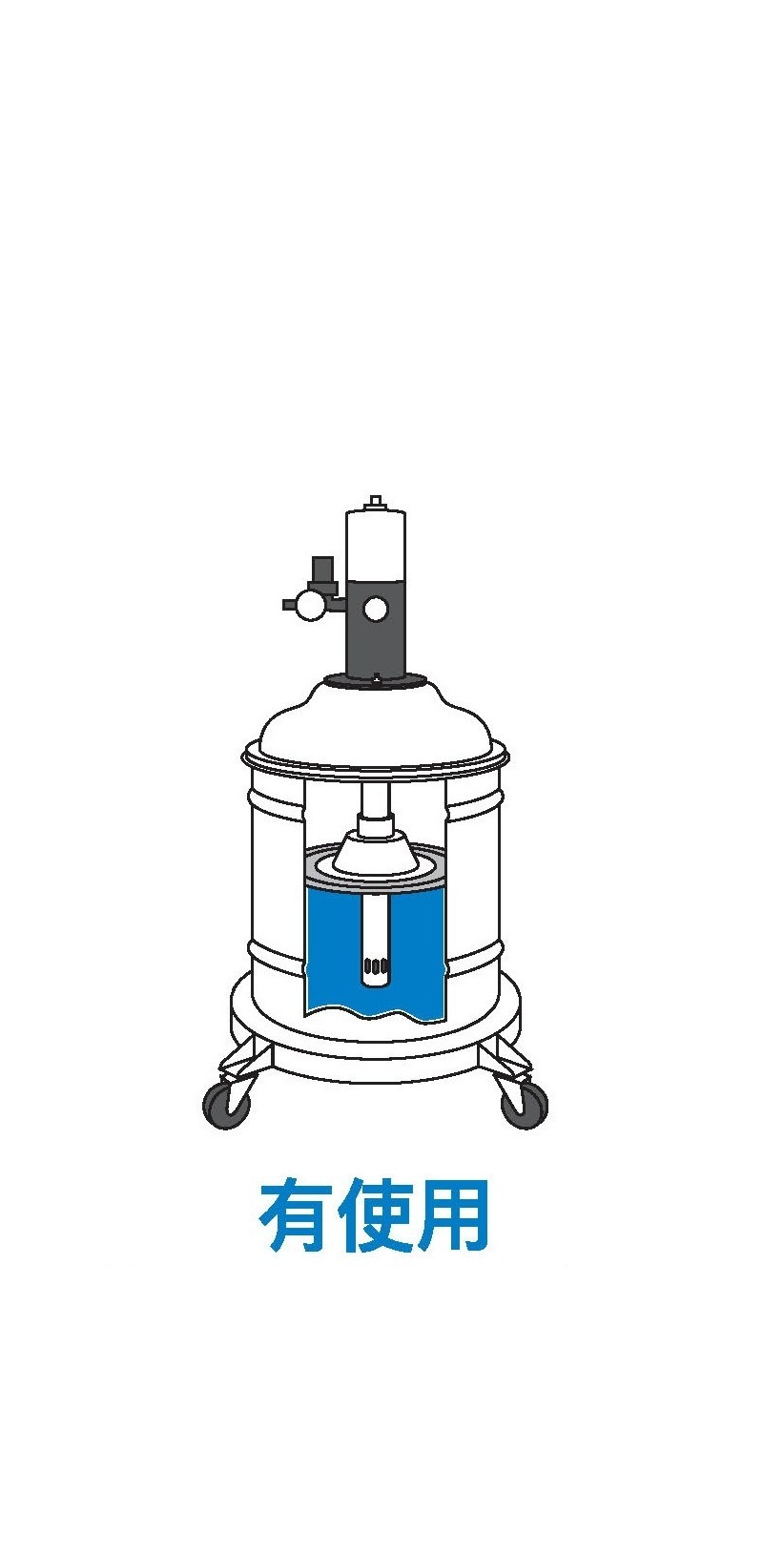

(2)A pressure plate is used. The grease can be sucked evenly and smoothly with follower plate.

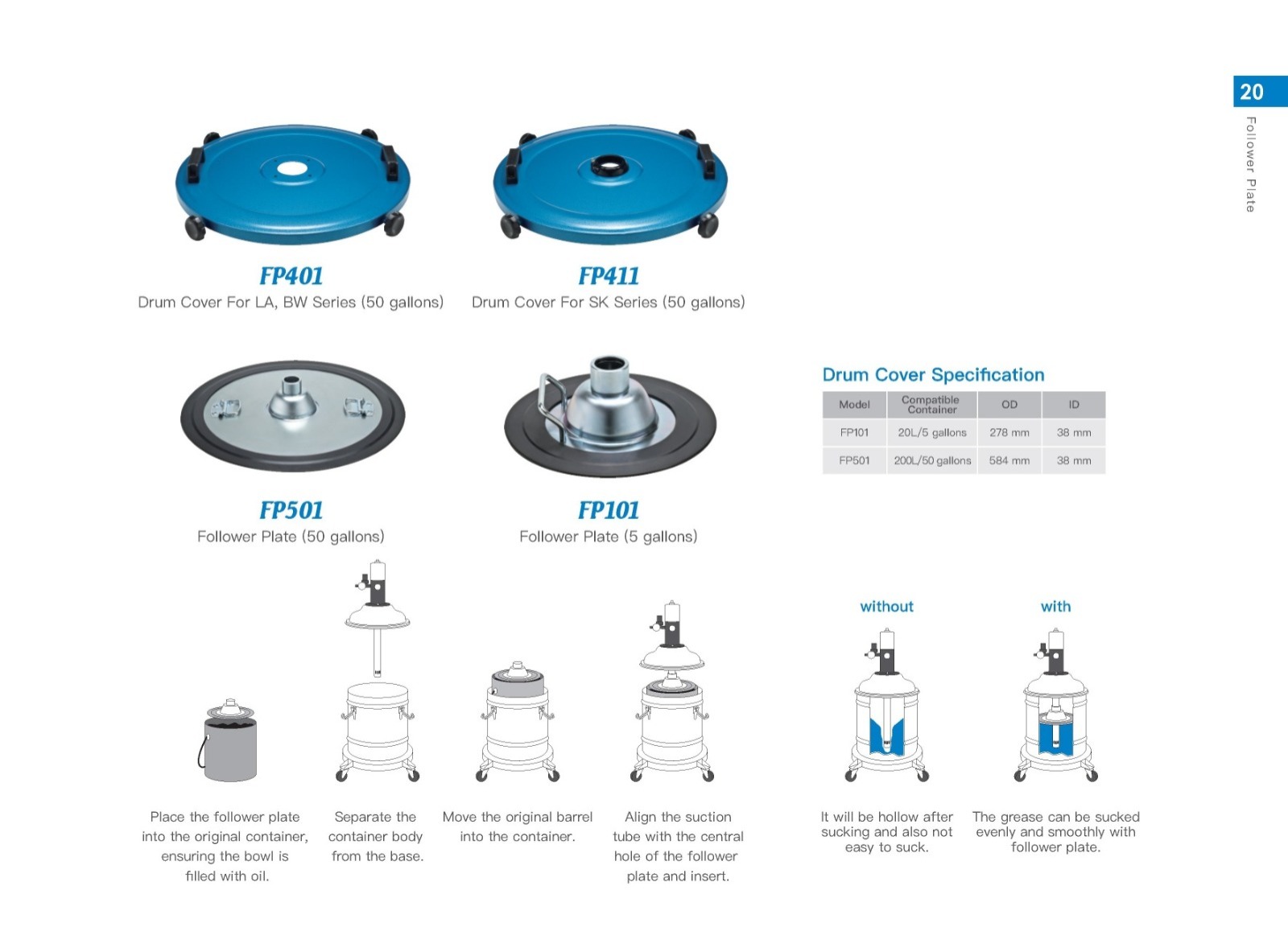

【 Pressure plate installation method】



【 Pressure plate installation video 】

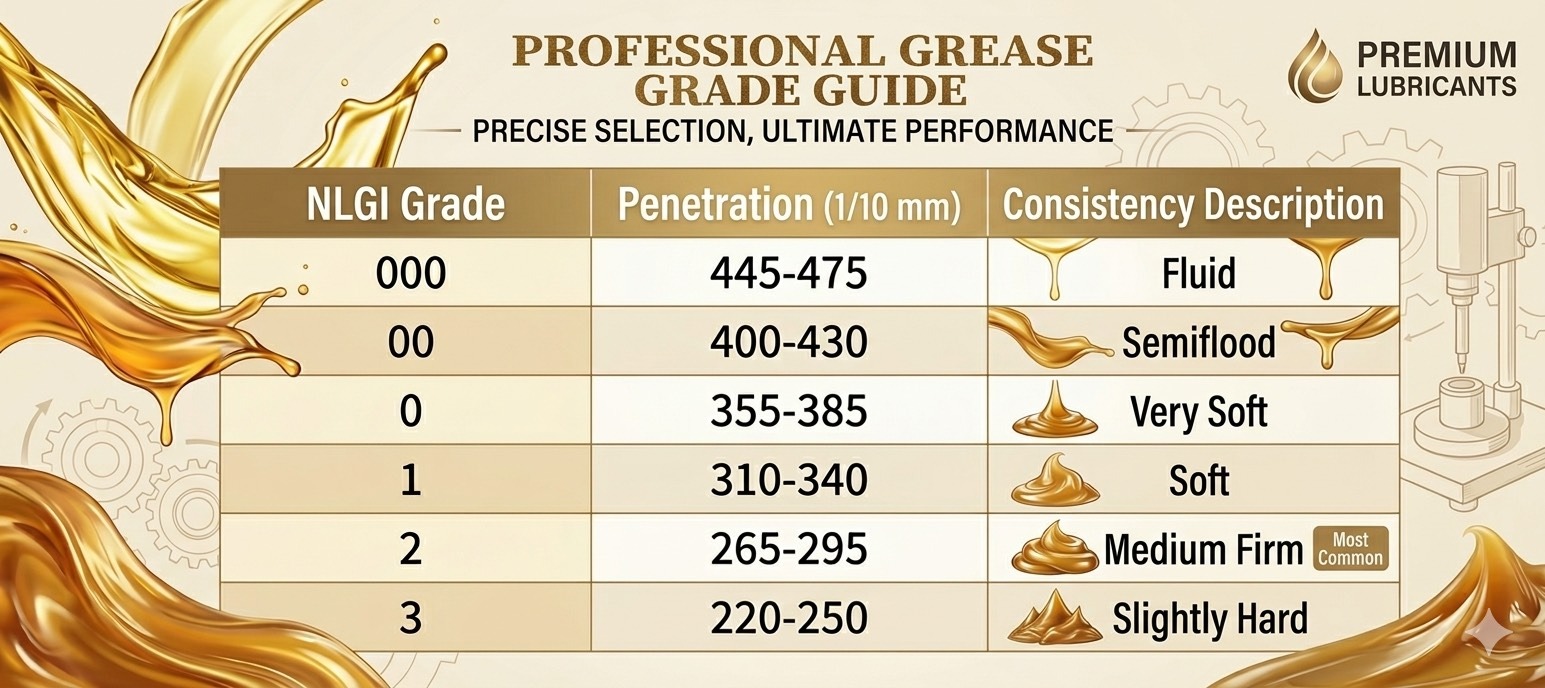

What do the numbers on greases mean?
We often hear people say "No. 1 grease," "No. 2 grease," but what do they actually mean?
✅ Common Grades and Applications: The most common grades in industry are #00, #0, #1, #2, and #3.

✅ Grade 1 Grease (#1): Softer, with better fluidity, commonly used in low-temperature environments or central lubrication systems (easy to pump).

✅ Grade 2 Grease (#2): Medium consistency (similar to peanut butter), the most versatile grade, suitable for most bearings and mechanical parts.

✅ Grade 3 Grease (#3): Harder, with better sealing and anti-leakage properties, commonly used in high-temperature or vertically mounted bearings to prevent lubricating oil from dripping due to gravity or vibration.

✅ Origin of the Name: Commonly known as "butter" or "cow butter" in Taiwan.

✅ Reason: Named for its semi-solid, greasy texture and mostly milky white or light yellow appearance, resembling butter.



How do I determine if a pressure plate is needed?



✅The key to determining this is the NLGI consistency grade of the lubricating oil.

Proper use of the pressure plate ensures smooth oil extraction and prevents the pump from running dry.



✅NLGI #00, #0 (semi-flow, extremely soft): No need to use

The oil has good fluidity and can flow to the pump inlet on its own.

✅NLGI #1 (soft, paste): Add as needed depending on environmental conditions. Generally, it is not required.

Special Note: If operating in winter or low-temperature environments, the oil may harden due to temperature drop. It is recommended to install a pressure plate to maintain a stable oil supply.

✅NLGI #2 (Medium consistency): Must be used
This grade of oil has lost its fluidity to automatically flow to the suction inlet. Please be sure to install a pressure plate to avoid creating voids (air locks) that could cause pump malfunction.

✅NLGI #3 (High viscosity, firm texture): Requires increased pressure support.
If a regular pump is difficult to extract the material, it is recommended to use an HV series pressure pump, which uses a pneumatic cylinder to apply strong downward pressure.

✅If you require extraction of high-viscosity oils, please contact our technical team directly.

【 Related Products 】



▲AIR OPERATED FLUID PUMP / GREASE PUMP

LA201

 MORE

▲AIR OPERATED FLUID PUMP / GREASE PUMP

LA301
MORE

▲AIR OPERATED FLUID PUMP / GREASE PUMP

LA401|LA501|LA601

MORE

【Company Introduction】

JO LONG Co., Ltd. is established in 1976. For the earlier stage, we mainly produced professional machinery. Since 1991, we start to use our "JOLONG" trademark to produce lubricating equipment and repairing tool of automobile and motorcycle. For the past 30 years, we devote to provide good products to the industry; therefore, we obtain good reputation. Thanks for your constant support and kindness. We will continue developing related products based on the principle of best quality and service to improve the working efficiency against safe, convenient and good machinery.


【Operation Principle】

Our quality policies are the quality is our number one priority, customer satisfaction and continuous improvement. Furthermore, we proceed each inspection against profession-based and data-based. We provide high quality and excellent performance product and consistent after-sales service to the domestic and international buyers and users.

【Facilities】

Our production facilities are CNC lathes, CNC Machining centers, hydraulic press, professional, numerical and consistent production process. Our testing facilities are video measuring machine, electric microscope and others.

▲CNC Machine Center

Self-made key components to ensure quality.

▲CNC Numerically Controlled  Lathe

Self-made key components to ensure quality.

▲2D Image Measuring Instrument

Strict QC Standards can control the quality of parts.

▲Integrated Production Equipment

Higher production yield with integrated production equipment.

▲Dedicated Assembly Machine

Mechanized assembly to eliminate human uncertainty.

▲Pump Testing Machine

Data of test result to ensure stability of quality.

【Certification】





✅ ISO 9001 International Quality Management System Certification



✅  EU CE safety certification

Model FP101
Capacity 20L
OD 278mm
ID 38mm
N.W. 1.0 kg
G.W. 1.5 kg
CUFT 0.3'
Packing Box
Product Detail

Feature

(1) Suitable for 20 liter (5 gallon) oil drums.

(2) Ensures even suction and smooth operation.

(3) Rubber outer diameter Ø278mm.

(4) Inner diameter of the central tube Ø38mm.

【Installation Diagram】

▲Dimensions



▲Installation Method




【Function Diagram】





(1)Without pressure plate. It will be hollow after sucking and also not easy to suck.

(2)A pressure plate is used. The grease can be sucked evenly and smoothly with follower plate.



【 Pressure plate installation method】



【 Pressure plate installation video 】



What do the numbers on greases mean?
We often hear people say "No. 1 grease," "No. 2 grease," but what do they actually mean?
✅ Common Grades and Applications: The most common grades in industry are #00, #0, #1, #2, and #3.

✅ Grade 1 Grease (#1): Softer, with better fluidity, commonly used in low-temperature environments or central lubrication systems (easy to pump).

✅ Grade 2 Grease (#2): Medium consistency (similar to peanut butter), the most versatile grade, suitable for most bearings and mechanical parts.

✅ Grade 3 Grease (#3): Harder, with better sealing and anti-leakage properties, commonly used in high-temperature or vertically mounted bearings to prevent lubricating oil from dripping due to gravity or vibration.

✅ Origin of the Name: Commonly known as "butter" or "cow butter" in Taiwan.

✅ Reason: Named for its semi-solid, greasy texture and mostly milky white or light yellow appearance, resembling butter.



How do I determine if a pressure plate is needed?



✅The key to determining this is the NLGI consistency grade of the lubricating oil.

Proper use of the pressure plate ensures smooth oil extraction and prevents the pump from running dry.



✅NLGI #00, #0 (semi-flow, extremely soft): No need to use

The oil has good fluidity and can flow to the pump inlet on its own.

✅NLGI #1 (soft, paste): Add as needed depending on environmental conditions. Generally, it is not required.

Special Note: If operating in winter or low-temperature environments, the oil may harden due to temperature drop. It is recommended to install a pressure plate to maintain a stable oil supply.

✅NLGI #2 (Medium consistency): Must be used
This grade of oil has lost its fluidity to automatically flow to the suction inlet. Please be sure to install a pressure plate to avoid creating voids (air locks) that could cause pump malfunction.

✅NLGI #3 (High viscosity, firm texture): Requires increased pressure support.
If a regular pump is difficult to extract the material, it is recommended to use an HV series pressure pump, which uses a pneumatic cylinder to apply strong downward pressure.

✅If you require extraction of high-viscosity oils, please contact our technical team directly.

【 Related Products 】



▲AIR OPERATED FLUID PUMP / GREASE PUMP

LA201

 MORE

▲AIR OPERATED FLUID PUMP / GREASE PUMP

LA301
MORE

▲AIR OPERATED FLUID PUMP / GREASE PUMP

LA401|LA501|LA601

MORE

【Company Introduction】

JO LONG Co., Ltd. is established in 1976. For the earlier stage, we mainly produced professional machinery. Since 1991, we start to use our "JOLONG" trademark to produce lubricating equipment and repairing tool of automobile and motorcycle. For the past 30 years, we devote to provide good products to the industry; therefore, we obtain good reputation. Thanks for your constant support and kindness. We will continue developing related products based on the principle of best quality and service to improve the working efficiency against safe, convenient and good machinery.


【Operation Principle】

Our quality policies are the quality is our number one priority, customer satisfaction and continuous improvement. Furthermore, we proceed each inspection against profession-based and data-based. We provide high quality and excellent performance product and consistent after-sales service to the domestic and international buyers and users.

【Facilities】

Our production facilities are CNC lathes, CNC Machining centers, hydraulic press, professional, numerical and consistent production process. Our testing facilities are video measuring machine, electric microscope and others.

▲CNC Machine Center

Self-made key components to ensure quality.

▲CNC Numerically Controlled  Lathe

Self-made key components to ensure quality.

▲2D Image Measuring Instrument

Strict QC Standards can control the quality of parts.

▲Integrated Production Equipment

Higher production yield with integrated production equipment.

▲Dedicated Assembly Machine

Mechanized assembly to eliminate human uncertainty.

▲Pump Testing Machine

Data of test result to ensure stability of quality.

【Certification】





✅ ISO 9001 International Quality Management System Certification



✅  EU CE safety certification

Specification
Model FP101
Capacity 20L
OD 278mm
ID 38mm
N.W. 1.0 kg
G.W. 1.5 kg
CUFT 0.3'
Packing Box
