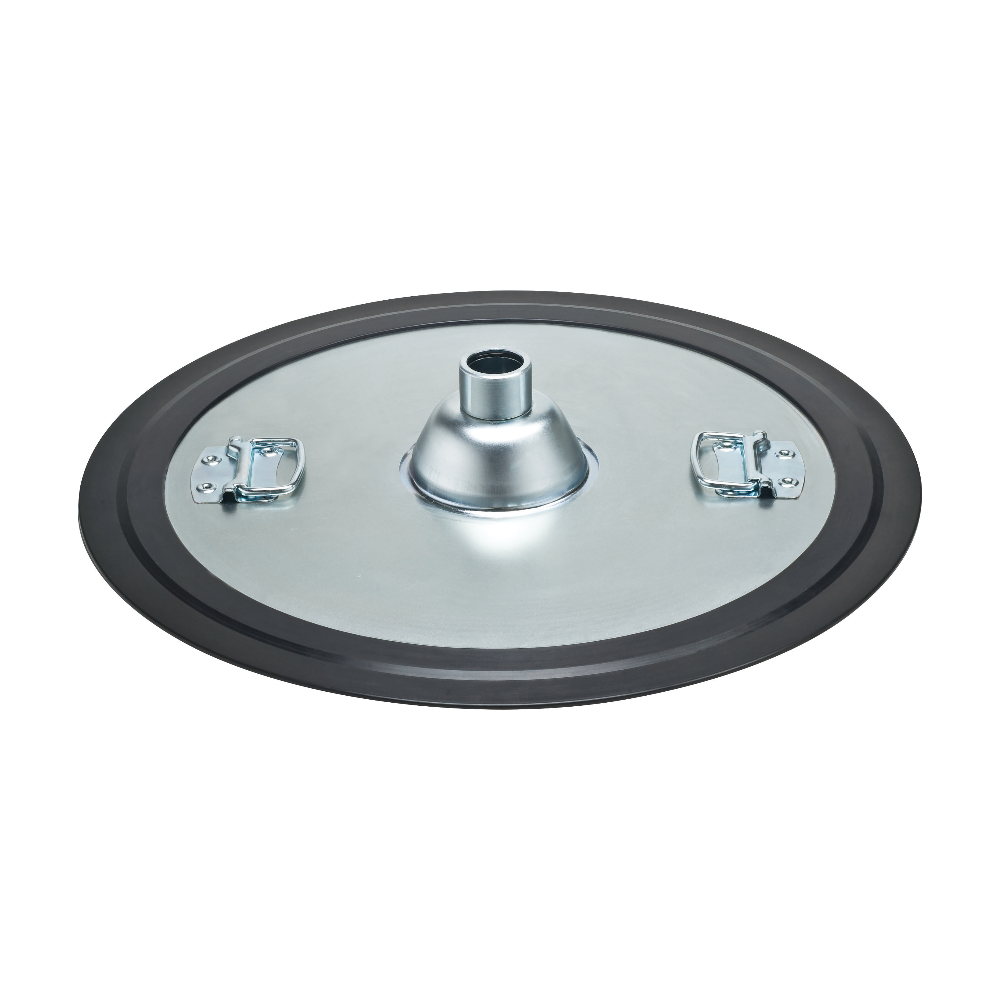

【FP501】FOLLOWER PLATE

Product Description

Suitable for SK/BW/LA 200 liter.

分享:

Product Detail
Specification

Feature

(1)Suitable for 200 liter (50 gallon) oil drums.

(2)Ensures even suction and smooth operation.

(3)Rubber outer diameter Ø585mm.

(4)Inner diameter of the central tube Ø38mm.

【Function Diagram】

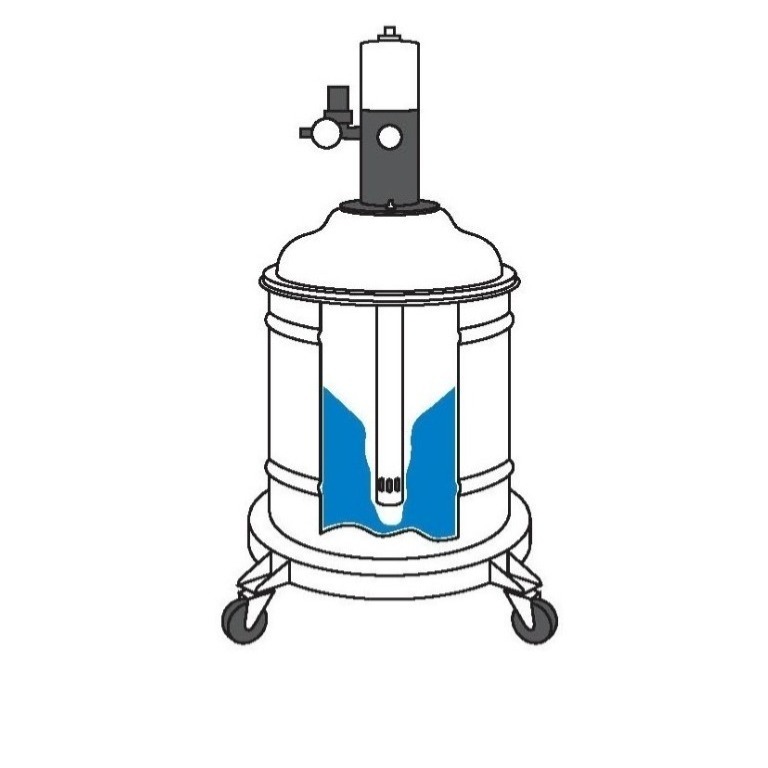

▲Without pressure plate

 It will be hollow after sucking and also not easy to suck.

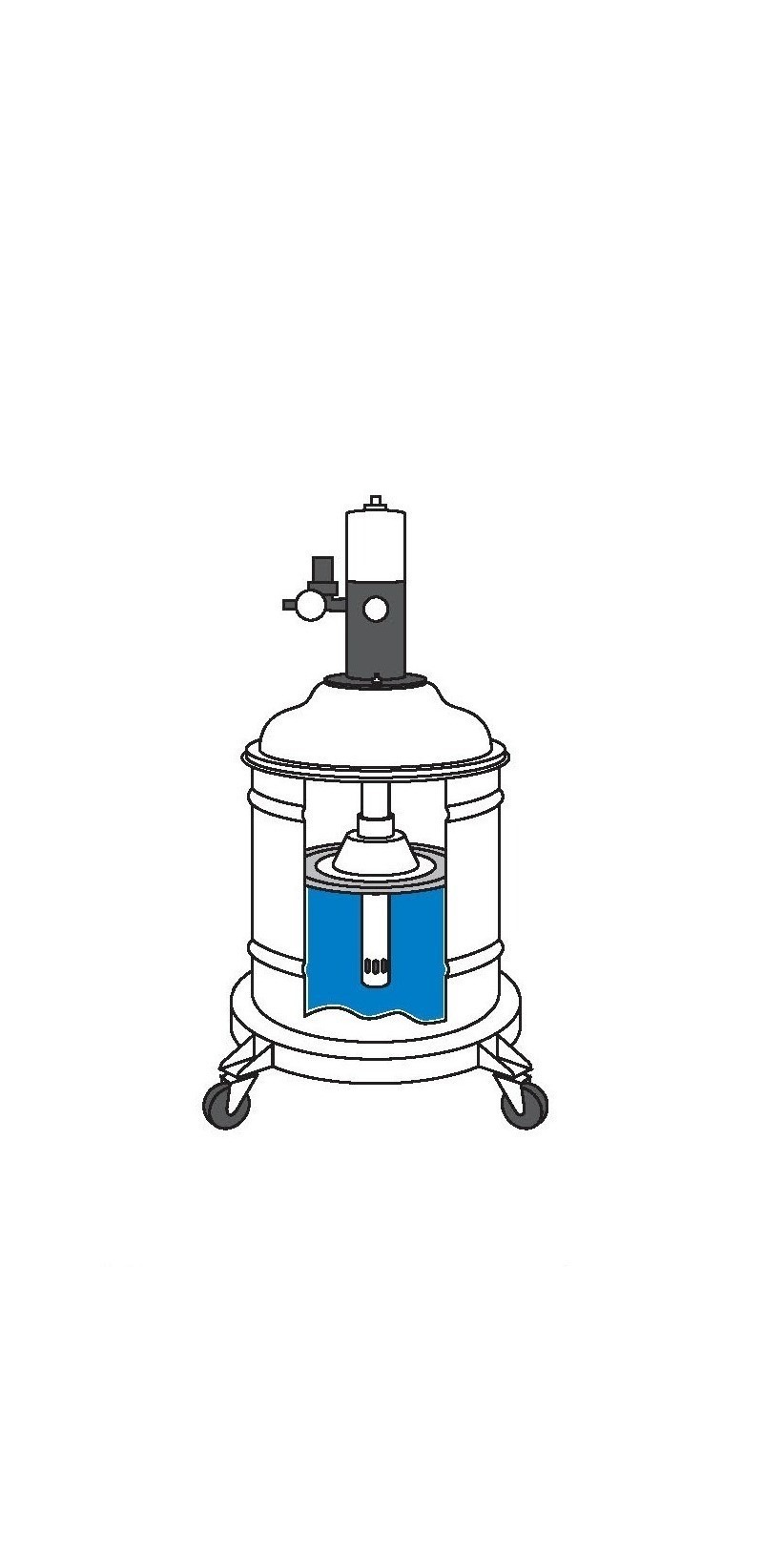

▲A pressure plate is used.

The grease can be sucked evenly and smoothly with follower plate.

【Installation Diagram】

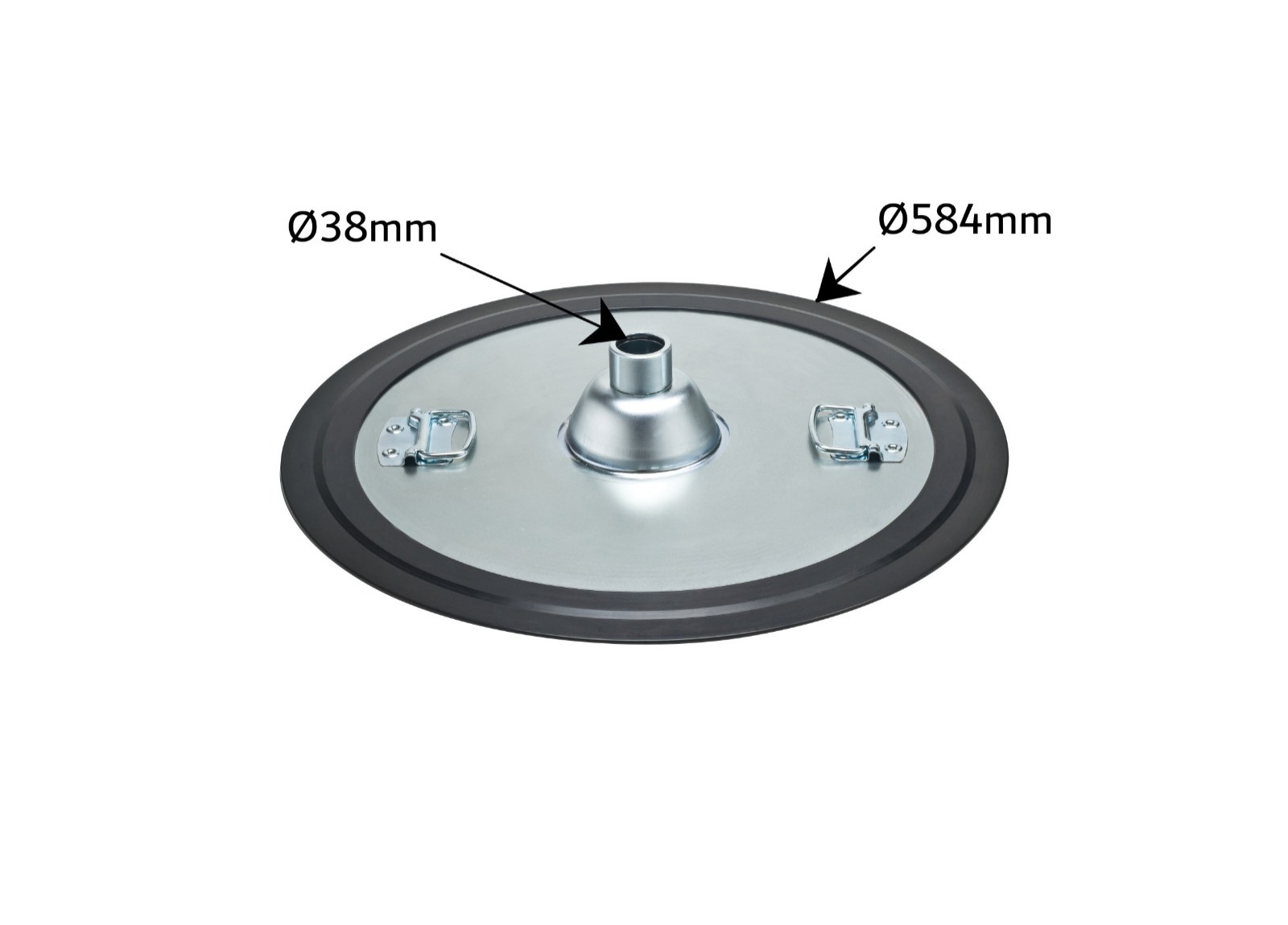

▲Dimensions

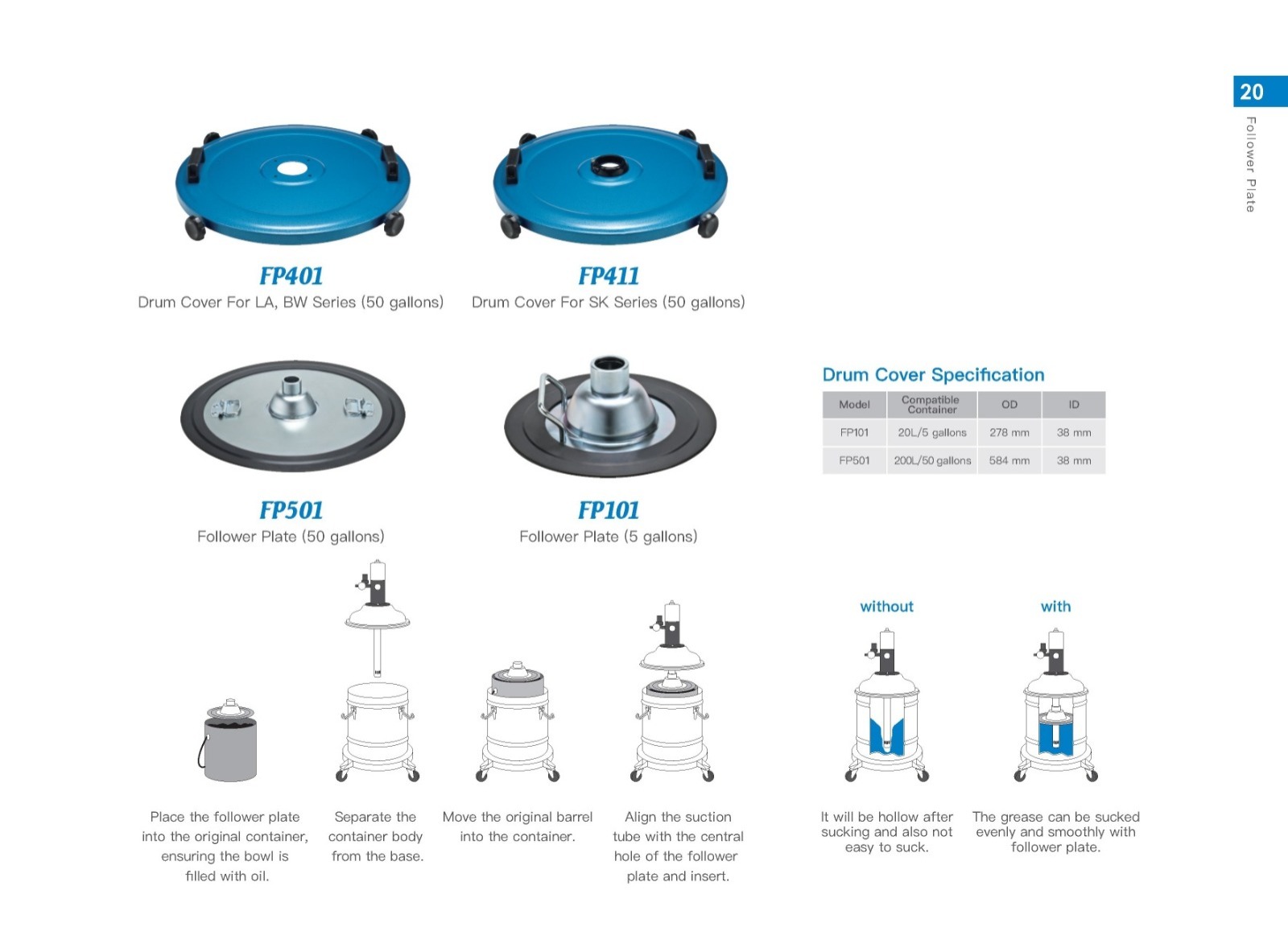

▲Installation Method



Model FP501
Capacity 200L
OD 584mm
ID 38mm
N.W. 4.3 kg
G.W. 5.5 kg
CUFT 1.3'
Packing Box
Product Detail

Feature

(1)Suitable for 200 liter (50 gallon) oil drums.

(2)Ensures even suction and smooth operation.

(3)Rubber outer diameter Ø585mm.

(4)Inner diameter of the central tube Ø38mm.

【Function Diagram】





▲Without pressure plate

 It will be hollow after sucking and also not easy to suck.



▲A pressure plate is used.

The grease can be sucked evenly and smoothly with follower plate.

【Installation Diagram】





▲Dimensions



▲Installation Method



Specification
Model FP501
Capacity 200L
OD 584mm
ID 38mm
N.W. 4.3 kg
G.W. 5.5 kg
CUFT 1.3'
Packing Box
