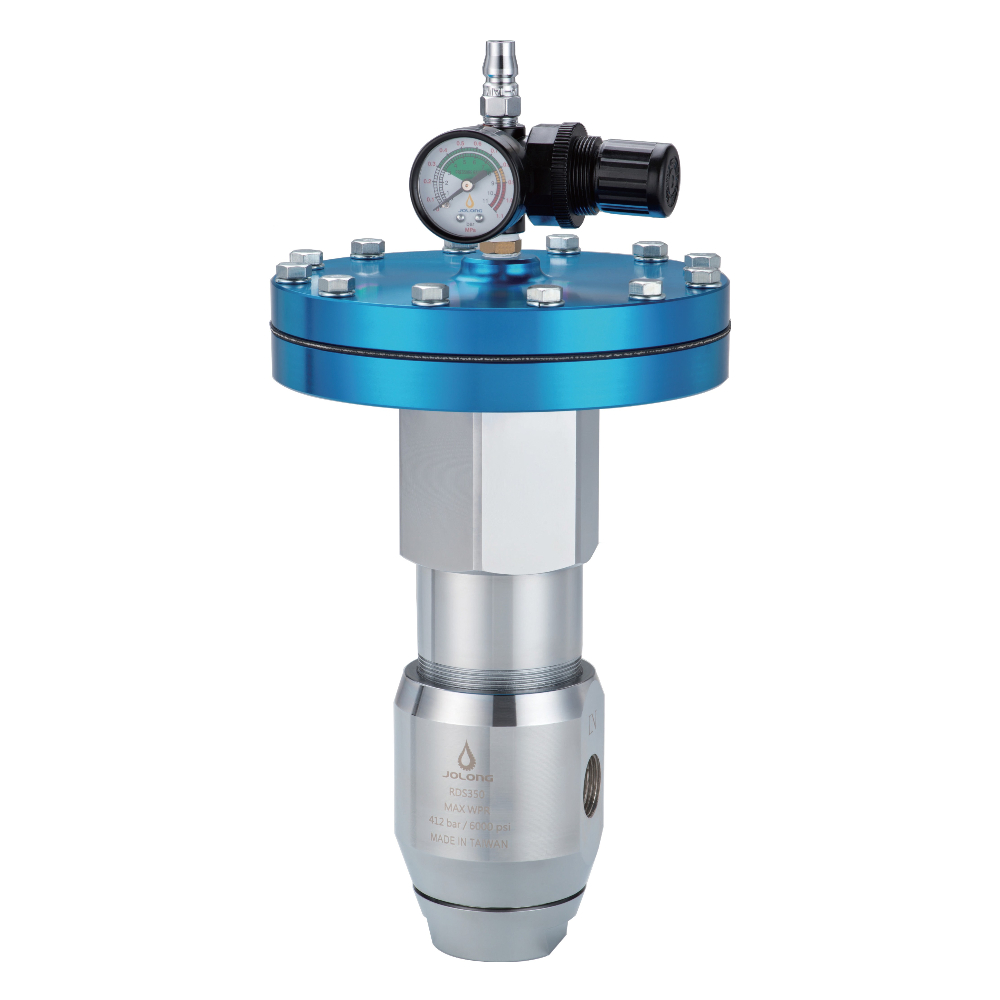

【RDS350】FLUID REGULATOR
Product Description
Feature
(1) High Pressure capacity(2) Wear resistant material for long life
(3) Unique design allows for easy maintenance
(4) Multiple seal configurations are available
(5) Accurately controls high-pressure system
Usage
(1) Any grease from #00 to #3 can be used.
(2) Adjust the grease discharge pressure to avoid damaging the equipment or mold fixtures due to excessive input pressure.

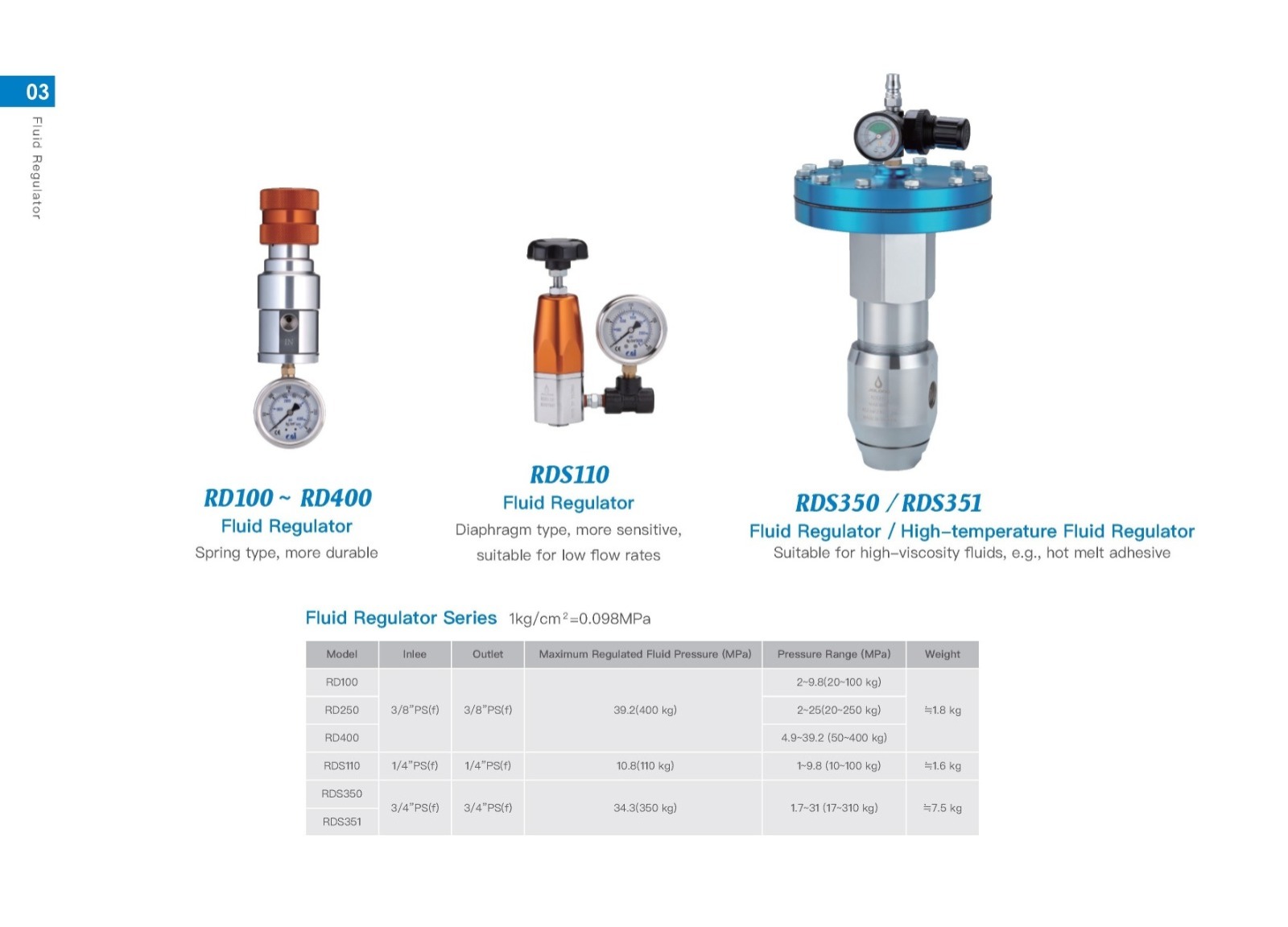

| Model | RDS350 |
| Inlet size | 3/4"PS(f) |
| Outlet size | 3/4"PS(f) |
| Pressure Range | 1.7 ~ 31 MPa / 17 ~ 310 kg |
| Maximum Regulated Fluid Pressure | 34.3 MPa / 350 kg |
| N.W. | 1.6 kg |
Feature
(1) High Pressure capacity(2) Wear resistant material for long life
(3) Unique design allows for easy maintenance
(4) Multiple seal configurations are available
(5) Accurately controls high-pressure system
Usage
(1) Any grease from #00 to #3 can be used.
(2) Adjust the grease discharge pressure to avoid damaging the equipment or mold fixtures due to excessive input pressure.
| Model | RDS350 |
| Inlet size | 3/4"PS(f) |
| Outlet size | 3/4"PS(f) |
| Pressure Range | 1.7 ~ 31 MPa / 17 ~ 310 kg |
| Maximum Regulated Fluid Pressure | 34.3 MPa / 350 kg |
| N.W. | 1.6 kg |
