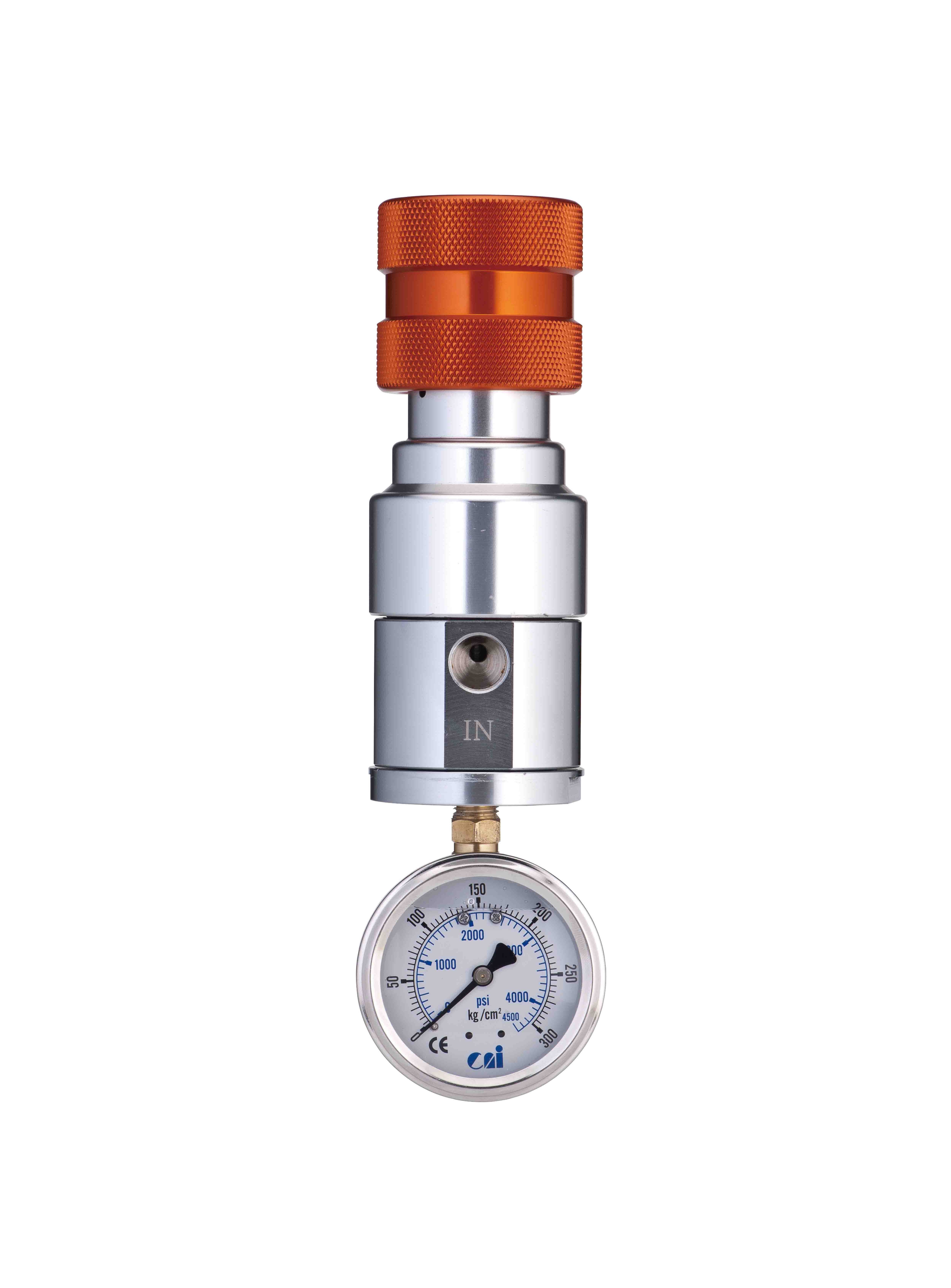

【RD250】FLUID REGULATOR
Product Description
Feature
(1) The mechanical pressure regulating structure is durable and can withstand high input pressure.
(2) This pressure regulating valve can be installed with quantitative valves BD05~BD10 series.
Usage
(1) Suitable for semi-solid, high-viscosity, non-gelling adhesives.
(2) Grease #0~#3.
(3) Engine oil.
(4) Gear oil.
(5) Free from organic solvents, such as diesel, gasoline, and toluene.
(6) Free from hard particles.
| Model | RD250 |
| Inlet size | 3/8"PS(f) |
| Outlet size | 3/8"PS(f) |
| Pressure Range | 2 ~ 25 MPa / 20 ~ 250 kg |
| Maximum Regulated Fluid Pressure | 39.2 MPa / 400 kg |
| N.W. | 1.8 kg |
Feature
(1) The mechanical pressure regulating structure is durable and can withstand high input pressure.
(2) This pressure regulating valve can be installed with quantitative valves BD05~BD10 series.
Usage
(1) Suitable for semi-solid, high-viscosity, non-gelling adhesives.
(2) Grease #0~#3.
(3) Engine oil.
(4) Gear oil.
(5) Free from organic solvents, such as diesel, gasoline, and toluene.
(6) Free from hard particles.
| Model | RD250 |
| Inlet size | 3/8"PS(f) |
| Outlet size | 3/8"PS(f) |
| Pressure Range | 2 ~ 25 MPa / 20 ~ 250 kg |
| Maximum Regulated Fluid Pressure | 39.2 MPa / 400 kg |
| N.W. | 1.8 kg |
