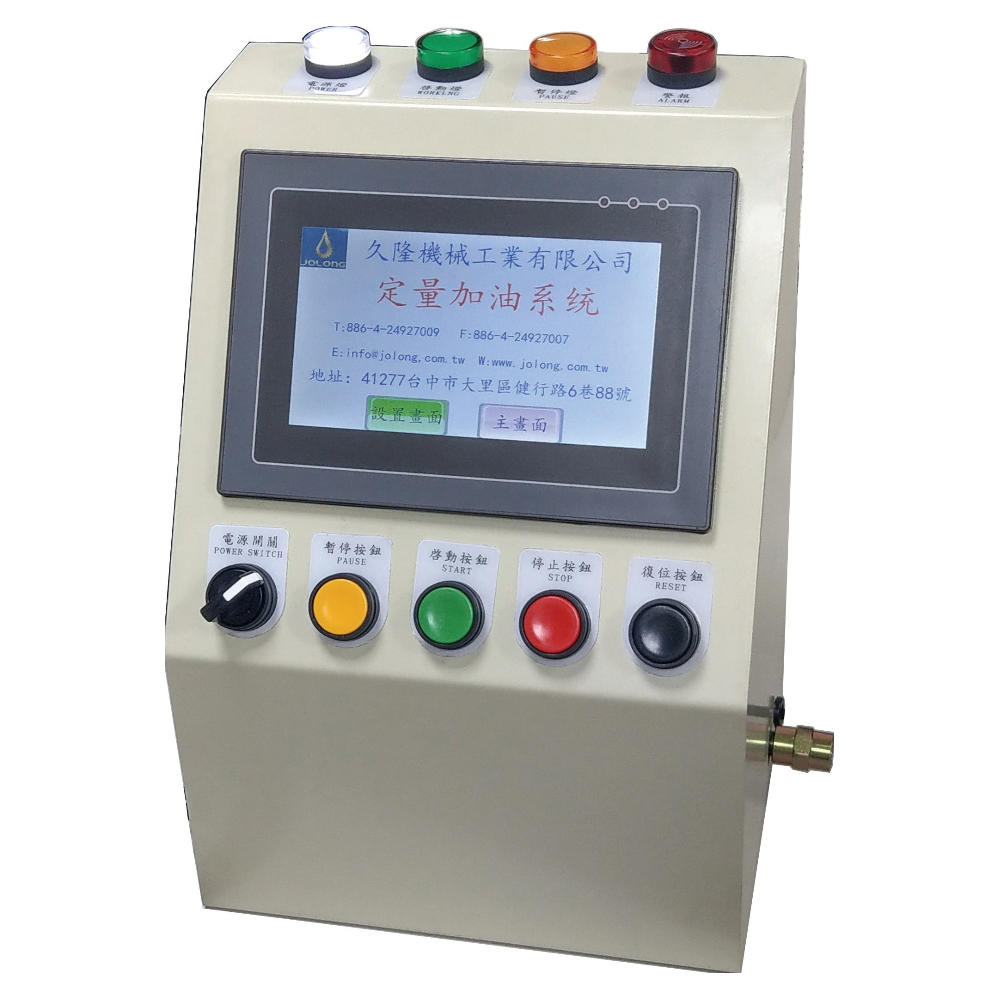

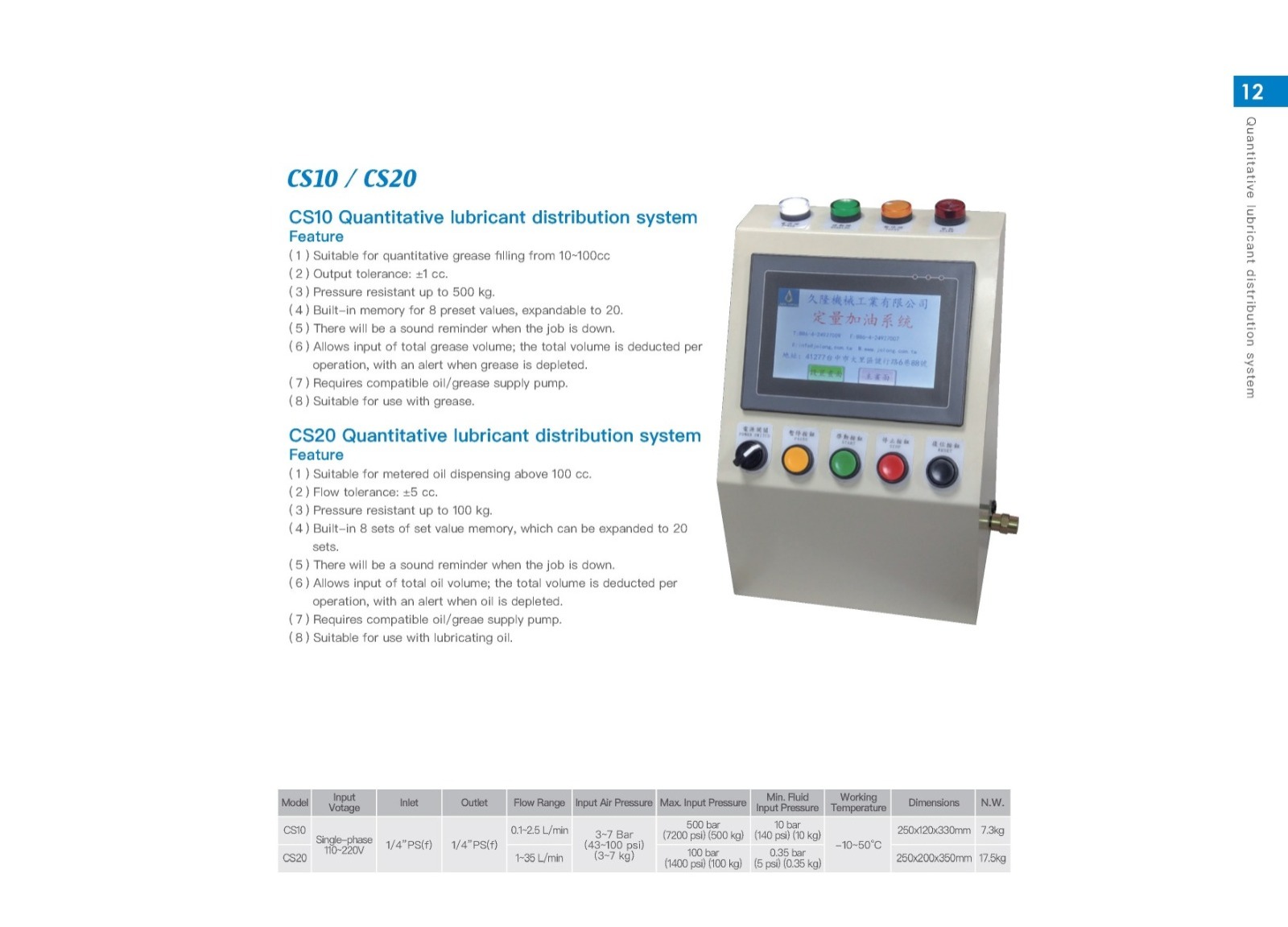

【CS20】 Quantitative lubricant distribution system
Product Description
Feature
(1) Suitable for metered oil filling of 100cc and above.
(2) Flow rate tolerance ±5cc.
(3) Pressure resistance 100 kg.
(4) Built-in 8 sets of digital setting memory, expandable to 20 sets.
(5) Alarm sound reminder upon completion of operation.
(6) Can input total oil weight, deduct weight item by item, and sound alarm to indicate no oil.
(7) Requires an oil pump.
(8) Suitable for engine oil.
(9) Using an elliptical gear flow calculation system, the error range is small and the repeatability is high.
(10) It can be used for quantitative output of lubricating oil/grease on the production lines of various factories, or for packaging of grease, lubricating oil, and non-corrosive liquids.
| Model | CS20 |
| Input Votage | Single-phase 110~220V |
| Inlet size | 1/4"PS(f) |
| Outlet size | 1/4"PS(f) |
| Flow range | 1 ~ 35 L / min |
| Input Air Pressure | 3~7bar / 43~100psi / 3~7kg |
| Max. Input Pressure | 100 bar / 1400 psi / 100kg |
| Min. Fluid Input Pressure | 0.35bar / 5psi / 0.35kg |
| Working Temperature | -10°~50° |
| N.W. | 17.5 kg |
Feature
(1) Suitable for metered oil filling of 100cc and above.
(2) Flow rate tolerance ±5cc.
(3) Pressure resistance 100 kg.
(4) Built-in 8 sets of digital setting memory, expandable to 20 sets.
(5) Alarm sound reminder upon completion of operation.
(6) Can input total oil weight, deduct weight item by item, and sound alarm to indicate no oil.
(7) Requires an oil pump.
(8) Suitable for engine oil.
(9) Using an elliptical gear flow calculation system, the error range is small and the repeatability is high.
(10) It can be used for quantitative output of lubricating oil/grease on the production lines of various factories, or for packaging of grease, lubricating oil, and non-corrosive liquids.
| Model | CS20 |
| Input Votage | Single-phase 110~220V |
| Inlet size | 1/4"PS(f) |
| Outlet size | 1/4"PS(f) |
| Flow range | 1 ~ 35 L / min |
| Input Air Pressure | 3~7bar / 43~100psi / 3~7kg |
| Max. Input Pressure | 100 bar / 1400 psi / 100kg |
| Min. Fluid Input Pressure | 0.35bar / 5psi / 0.35kg |
| Working Temperature | -10°~50° |
| N.W. | 17.5 kg |
