Feature

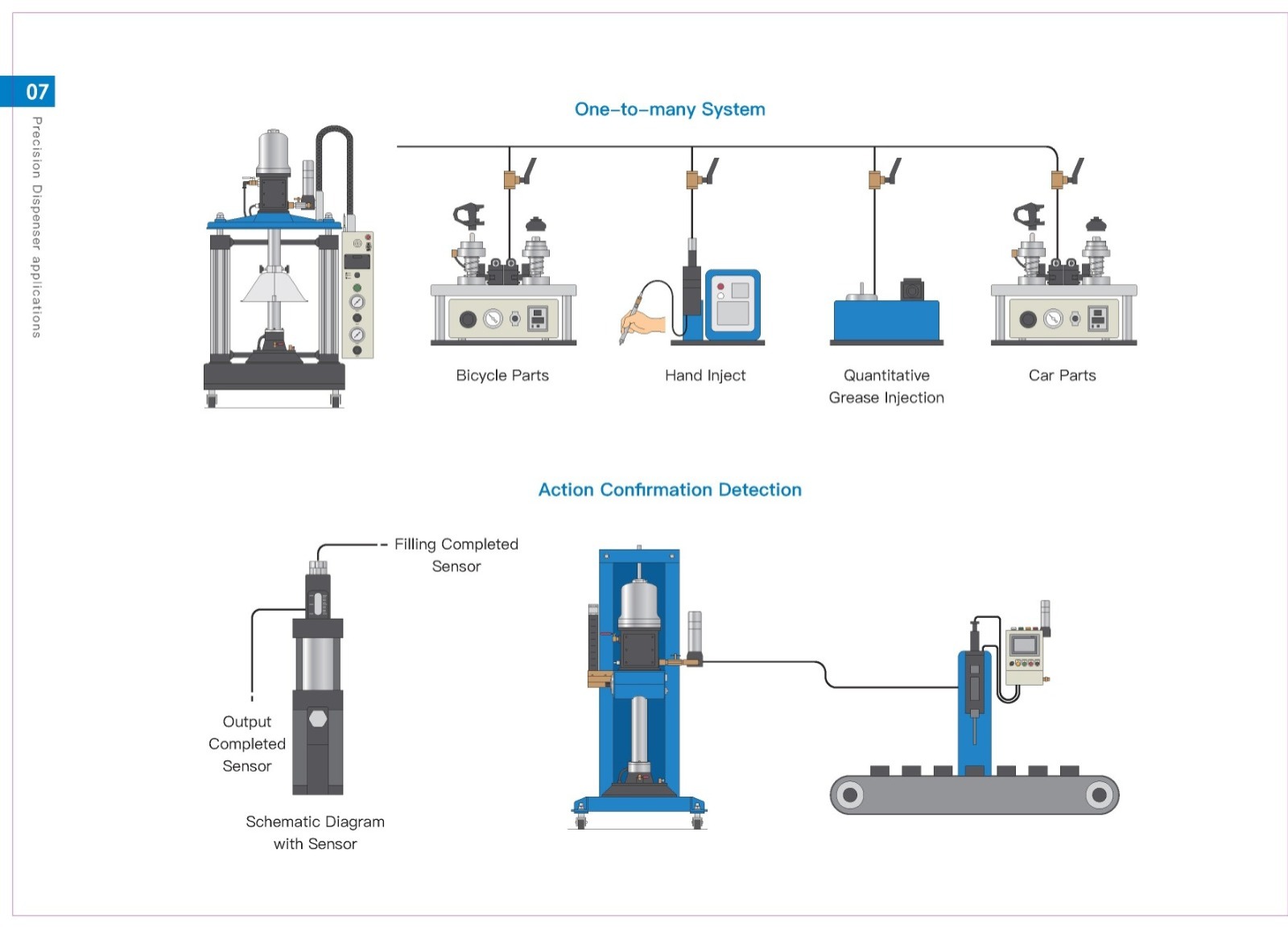

(1) Able to fit together with sensor, provide the inspection functions of oil back-up finishing and oil output finishing.
(2) Cylinder of ration is used; the oil output volume will not be affected by the difference of pressure, oil viscosity or temperature change.Usage
(1) General 00#~3# grease , semi-solid or high-viscosity liquid.
(2) Engine oil, gear oil, liquid.
(3) Non-gelling adhesives, free of organic solvents, no particles.
(4) For special grease please contact with us.

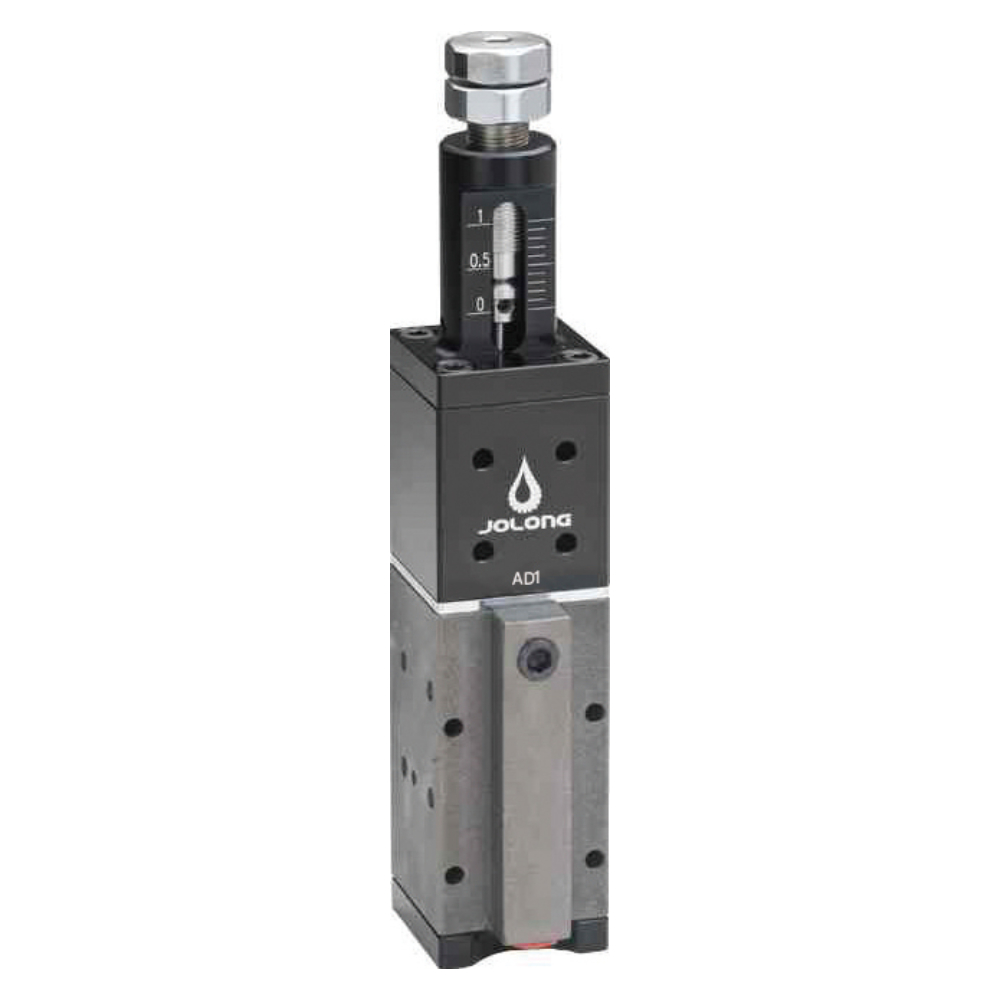

| Model | AD1 |
| Dispensing volume (cm3/stroke)(±1%~2%) | 0.05 C.C~1 C.C |
| Minimum operating pressure Lubricant | 1.5MPa / 15kg |
| Minimum operating pressure Barometric pressure | 0.3MPa / 3kg |
| Operating pressure range Lubricant | 1.5~12MPa / 15kg~120kg |
| Operating pressure range Barometric pressure | 0.3~0.7MPa / 3kg~7kg |
| Bearable pressure on lubricant | 12MPa / 120kg |
| Grease range | ●NLGI No.0~No.3 ●Engine oil ●Gear oil ●Non-solidifying colloids (Must be free of organic solvents) |
| N.W. | 1.2 kg |
Feature
(1) Able to fit together with sensor, provide the inspection functions of oil back-up finishing and oil output finishing.
(2) Cylinder of ration is used; the oil output volume will not be affected by the difference of pressure, oil viscosity or temperature change.Usage
(1) General 00#~3# grease , semi-solid or high-viscosity liquid.
(2) Engine oil, gear oil, liquid.
(3) Non-gelling adhesives, free of organic solvents, no particles.
(4) For special grease please contact with us.
| Model | AD1 |
| Dispensing volume (cm3/stroke)(±1%~2%) | 0.05 C.C~1 C.C |
| Minimum operating pressure Lubricant | 1.5MPa / 15kg |
| Minimum operating pressure Barometric pressure | 0.3MPa / 3kg |
| Operating pressure range Lubricant | 1.5~12MPa / 15kg~120kg |
| Operating pressure range Barometric pressure | 0.3~0.7MPa / 3kg~7kg |
| Bearable pressure on lubricant | 12MPa / 120kg |
| Grease range | ●NLGI No.0~No.3 ●Engine oil ●Gear oil ●Non-solidifying colloids (Must be free of organic solvents) |
| N.W. | 1.2 kg |
