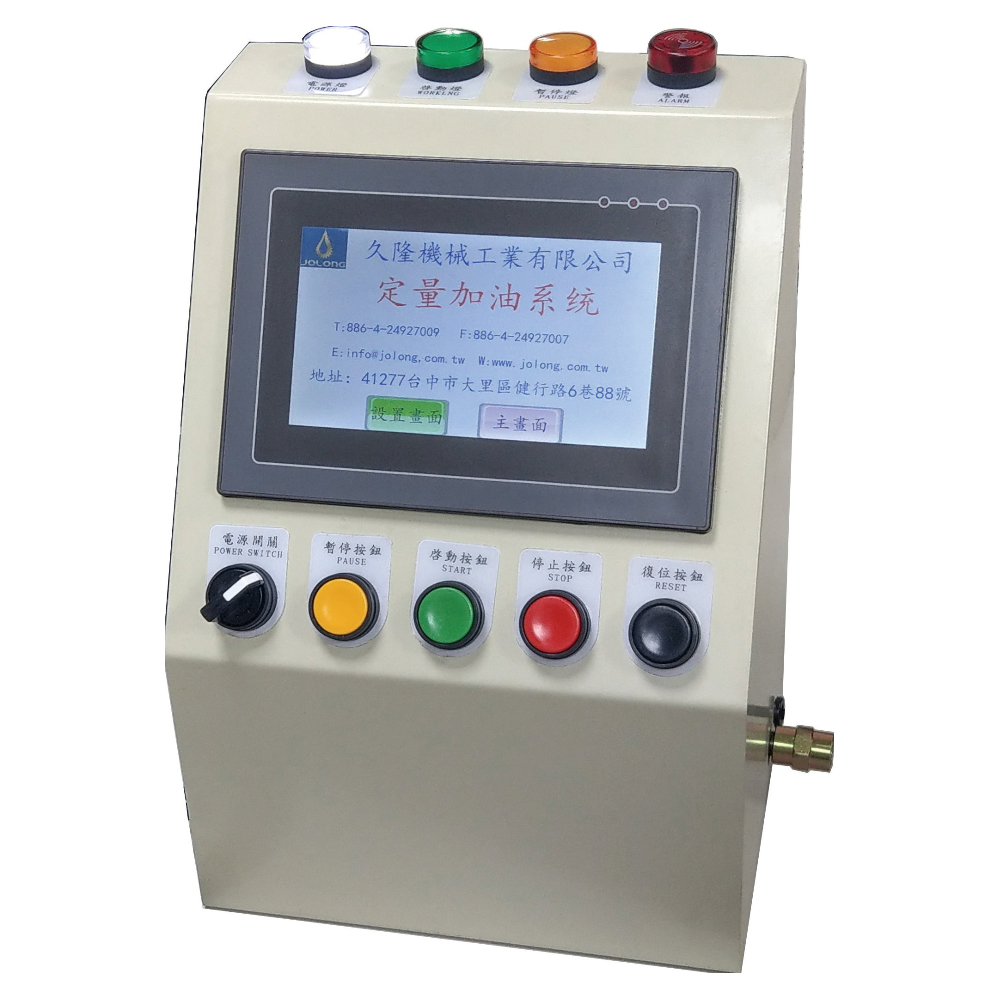

Quantitative lubricant distribution system CS10
Product Description
Feature
(1) Suitable for quantitative oil filling of 10~100 cc.
(2) Flow rate tolerance ±1 cc.
(3) Pressure resistance 500 kg.
(4) Built-in 8 sets of digital setting value memory, expandable to 20 sets.
(5) Alarm sound reminder upon completion of work.
(6) Can input total oil weight, deduct weight item by item, and sound alarm to indicate no oil.
(7) Requires an oil supply pump.
(8) Suitable for grease.
(9) Using an elliptical gear flow calculation system, the error range is small and the repeatability is high.
(10) It can be used for quantitative output of lubricating oil/grease on the production lines of various factories, or for packaging of grease, lubricating oil, and non-corrosive liquids.

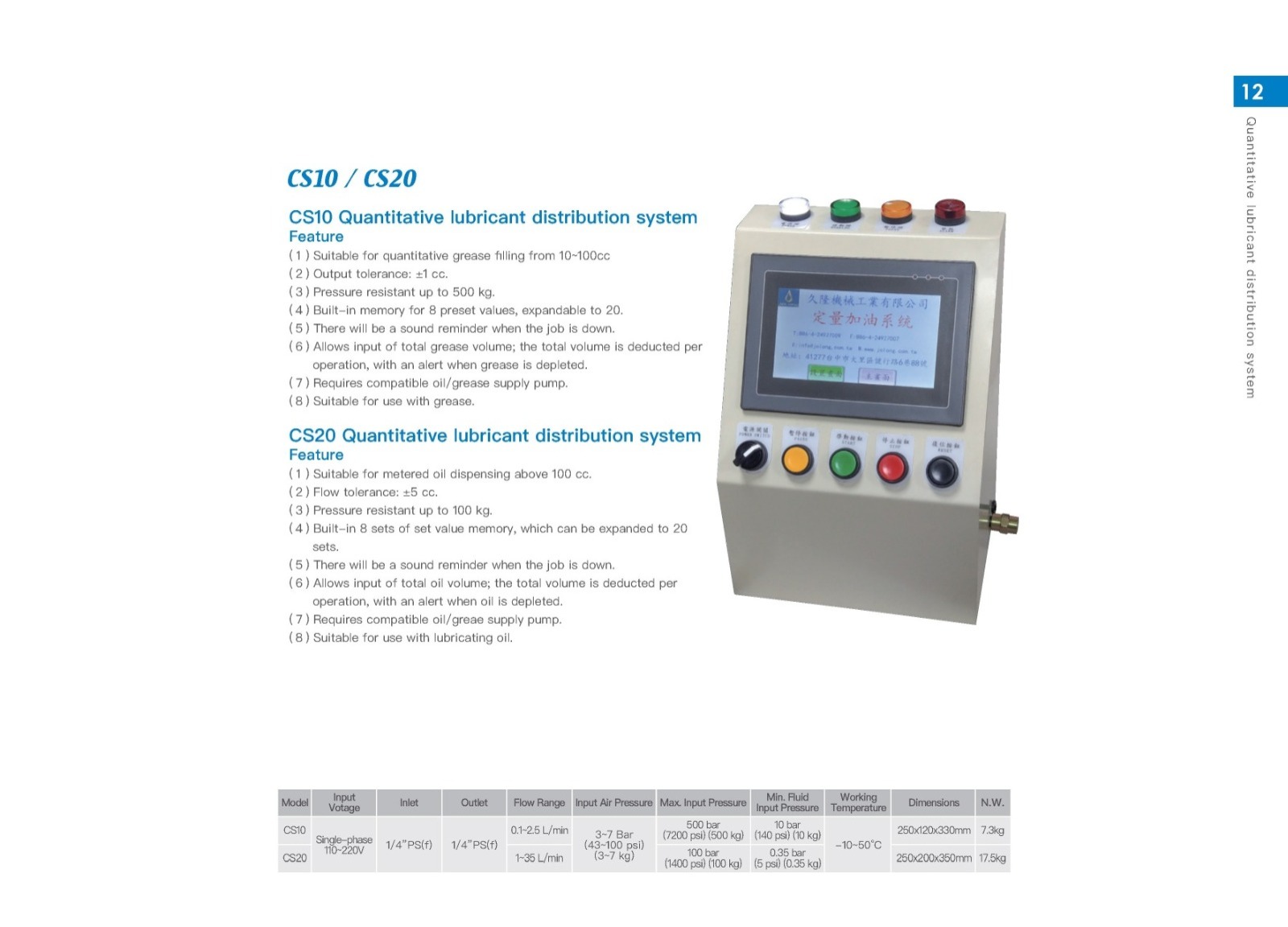

| Quantitative Lubricant Distribution System: CS10 vs. CS20 Technical Analysis Table | ||
| Item | CS10 System | CS20 System |
| Measurement Principles | High-resistance oval gear metering sensor | Wide-channel elliptical gear metering sensor |
| Applicable Oils | Grease | Oil |
| NLGI 000# ~ 2# | Various types of lubricating oil, gear oil, and hydraulic oil | |
| Max.Fluid Input Pressure | 500 bar / 7200 psi | 100 bar / 1400 psi |
| Accuracy | ±1 c.c. | ±5 c.c. |
| Extremely high precision | Industry standard precision | |
| Core Functions | ● Preset quantitative/circulating oil injection mode | ● Large capacity preset oil filling mode |
| ● Digital Remaining Fuel Level Real-Time Monitoring System | ● Low fuel warning function | |
| ● Automated production line system integration (signal feedback) | ● Automated production line system integration (signal feedback) | |
| Good Point | ● High-pressure stability: Capable of precise power output even under extremely high resistance. | ● Supports high flow rate output and high oil filling efficiency |
| ● Precise measurement reduces waste of high-priced oils. | ● Digital management reduces fuel waste | |
| Defect | ● Low flow rate, unsuitable for large-area lubrication with thin oil. | ● Relatively low accuracy (error 5 cc). |
| ● High oil supply pressure requirements | ● It has low pressure tolerance and is not recommended for use with high-viscosity greases. | |
| Usage | ●Single-point quantitative lubrication suitable for precision parts machining or production line automation | ●Suitable for oil filling during vehicle maintenance at repair service stations |
| ●Bearing assembly line, automatic grease injection for small parts, grease application for seals | ●Vehicle transmission/oil change, large gearbox filling | |
JO LONG Co., Ltd. is established in 1976. For the earlier stage, we mainly produced professional machinery. Since 1991, we start to use our "JOLONG" trademark to produce lubricating equipment and repairing tool of automobile and motorcycle. For the past 30 years, we devote to provide good products to the industry; therefore, we obtain good reputation. Thanks for your constant support and kindness. We will continue developing related products based on the principle of best quality and service to improve the working efficiency against safe, convenient and good machinery.
Our quality policies are the quality is our number one priority, customer satisfaction and continuous improvement. Furthermore, we proceed each inspection against profession-based and data-based. We provide high quality and excellent performance product and consistent after-sales service to the domestic and international buyers and users.
Our production facilities are CNC lathes, CNC Machining centers, hydraulic press, professional, numerical and consistent production process. Our testing facilities are video measuring machine, electric microscope and others.
| Model | CS10 |
| Input Votage | Single-phase 110~220V |
| Inlet size | 1/4"PS(f) |
| Outlet size | 1/4"PS(f) |
| Flow range | 0.1 ~ 2.5 L / min |
| Input Air Pressure | 3~7bar / 43~100psi / 3~7kg |
| Max. Input Pressure | 500 bar / 7200 psi / 500kg |
| Min. Fluid Input Pressure | 10bar / 140psi / 10kg |
| Working Temperature | -10°~50° |
| N.W. | 7.3 kg |
Feature
(1) Suitable for quantitative oil filling of 10~100 cc.
(2) Flow rate tolerance ±1 cc.
(3) Pressure resistance 500 kg.
(4) Built-in 8 sets of digital setting value memory, expandable to 20 sets.
(5) Alarm sound reminder upon completion of work.
(6) Can input total oil weight, deduct weight item by item, and sound alarm to indicate no oil.
(7) Requires an oil supply pump.
(8) Suitable for grease.
(9) Using an elliptical gear flow calculation system, the error range is small and the repeatability is high.
(10) It can be used for quantitative output of lubricating oil/grease on the production lines of various factories, or for packaging of grease, lubricating oil, and non-corrosive liquids.
| Quantitative Lubricant Distribution System: CS10 vs. CS20 Technical Analysis Table | ||
| Item | CS10 System | CS20 System |
| Measurement Principles | High-resistance oval gear metering sensor | Wide-channel elliptical gear metering sensor |
| Applicable Oils | Grease | Oil |
| NLGI 000# ~ 2# | Various types of lubricating oil, gear oil, and hydraulic oil | |
| Max.Fluid Input Pressure | 500 bar / 7200 psi | 100 bar / 1400 psi |
| Accuracy | ±1 c.c. | ±5 c.c. |
| Extremely high precision | Industry standard precision | |
| Core Functions | ● Preset quantitative/circulating oil injection mode | ● Large capacity preset oil filling mode |
| ● Digital Remaining Fuel Level Real-Time Monitoring System | ● Low fuel warning function | |
| ● Automated production line system integration (signal feedback) | ● Automated production line system integration (signal feedback) | |
| Good Point | ● High-pressure stability: Capable of precise power output even under extremely high resistance. | ● Supports high flow rate output and high oil filling efficiency |
| ● Precise measurement reduces waste of high-priced oils. | ● Digital management reduces fuel waste | |
| Defect | ● Low flow rate, unsuitable for large-area lubrication with thin oil. | ● Relatively low accuracy (error 5 cc). |
| ● High oil supply pressure requirements | ● It has low pressure tolerance and is not recommended for use with high-viscosity greases. | |
| Usage | ●Single-point quantitative lubrication suitable for precision parts machining or production line automation | ●Suitable for oil filling during vehicle maintenance at repair service stations |
| ●Bearing assembly line, automatic grease injection for small parts, grease application for seals | ●Vehicle transmission/oil change, large gearbox filling | |
JO LONG Co., Ltd. is established in 1976. For the earlier stage, we mainly produced professional machinery. Since 1991, we start to use our "JOLONG" trademark to produce lubricating equipment and repairing tool of automobile and motorcycle. For the past 30 years, we devote to provide good products to the industry; therefore, we obtain good reputation. Thanks for your constant support and kindness. We will continue developing related products based on the principle of best quality and service to improve the working efficiency against safe, convenient and good machinery.
Our quality policies are the quality is our number one priority, customer satisfaction and continuous improvement. Furthermore, we proceed each inspection against profession-based and data-based. We provide high quality and excellent performance product and consistent after-sales service to the domestic and international buyers and users.
Our production facilities are CNC lathes, CNC Machining centers, hydraulic press, professional, numerical and consistent production process. Our testing facilities are video measuring machine, electric microscope and others.
| Model | CS10 |
| Input Votage | Single-phase 110~220V |
| Inlet size | 1/4"PS(f) |
| Outlet size | 1/4"PS(f) |
| Flow range | 0.1 ~ 2.5 L / min |
| Input Air Pressure | 3~7bar / 43~100psi / 3~7kg |
| Max. Input Pressure | 500 bar / 7200 psi / 500kg |
| Min. Fluid Input Pressure | 10bar / 140psi / 10kg |
| Working Temperature | -10°~50° |
| N.W. | 7.3 kg |
