PRODUCT 【CD4】Stainless steel pneumatic valve

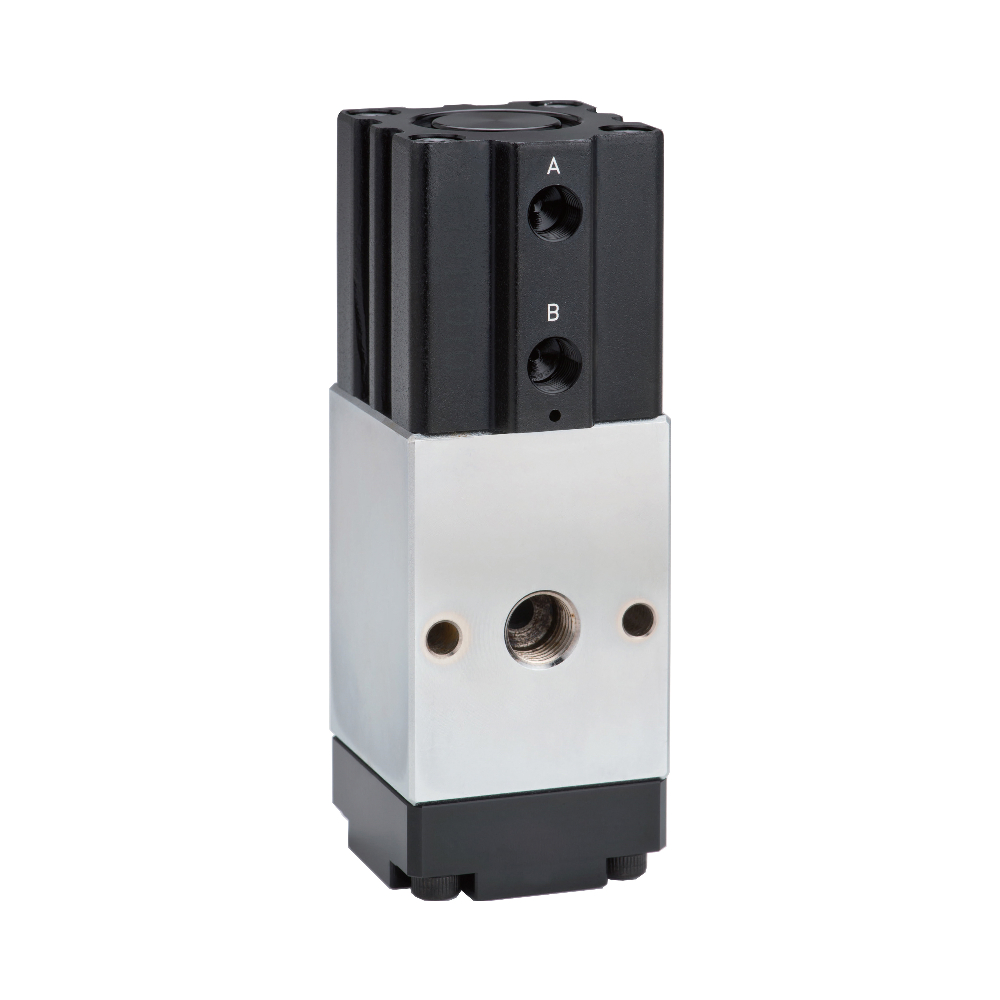

【CD4】Stainless steel pneumatic valve

Product Description

Suitable for use with organic solvents and food products | Time-controlled flow rate | Compatible with various needles for oil dispensing

分享：

Join the inquiry
Product Detail
Specification

Feature

(1) The mechanical principle is adopted to ensure long-term use. This device can be used in fluids such as lubricating oil or grease.
(2) The oil output speed can be adjusted using the rear knob.
(3) It can be provided in integrated or pipeline form to facilitate planning and application.
(4) Time-controlled flow rate, pneumatically driven, non-cylinder volumetric metering, with a discharge error of ±10%.
(5) Can be connected to a pneumatic pump, and the oil nozzle can be customized.
(6) Can be connected to various needles for oil dispensing.

Usage

(1) Gasoline.

(2) Toluene.

(3) Diesel fuel.

(4) Organic solvent.

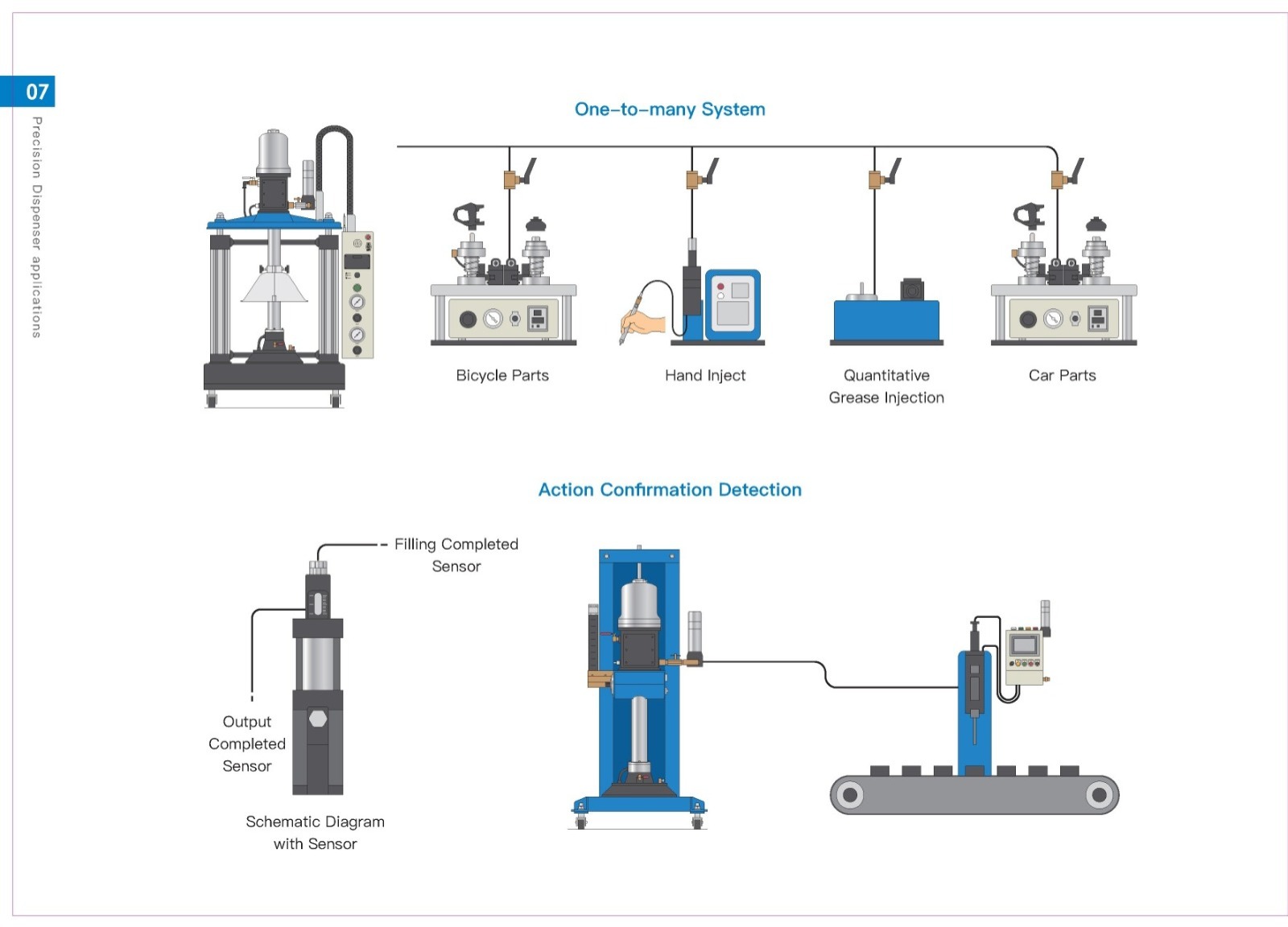

【Demonstration of Quantitative Oil Injection】

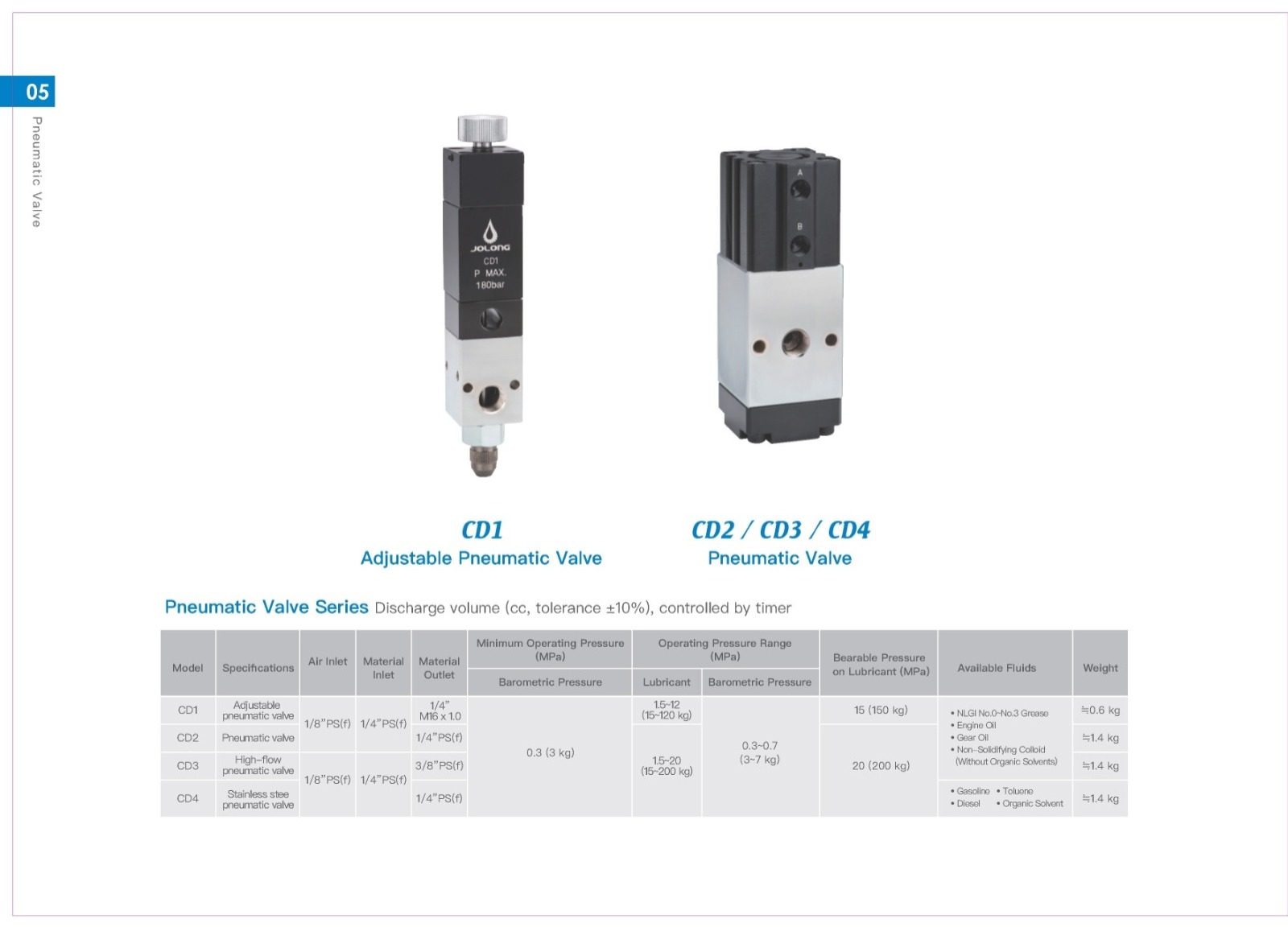

Catalogue
Model CD3
Air Inlet 1/8" PS(f)
Meterial Inlet 1/4"PS(f)
Material Outlet 1/4"PS(f)
Minimum Operating Pressure Barometric Pressure  0.3MPa  (3kg)
Operating Pressure Range Lubricant   1.5~20MPa / 15kg~200kg
Operating Pressure Range Barometric Pressure  0.3 ~ 0.7 MPa / 3 ~ 7kg
Bearable Pressure on Lubricant  20 Mpa / 2000kg
Available Fluids ●Gasoline.
●Toluene.
●Diesel fuel.
●Organic solvent.
N.W. 1.4 kg
Product Detail

Feature

(1) The mechanical principle is adopted to ensure long-term use. This device can be used in fluids such as lubricating oil or grease.
(2) The oil output speed can be adjusted using the rear knob.
(3) It can be provided in integrated or pipeline form to facilitate planning and application.
(4) Time-controlled flow rate, pneumatically driven, non-cylinder volumetric metering, with a discharge error of ±10%.
(5) Can be connected to a pneumatic pump, and the oil nozzle can be customized.
(6) Can be connected to various needles for oil dispensing.

Usage

(1) Gasoline.

(2) Toluene.

(3) Diesel fuel.

(4) Organic solvent.

【Demonstration of Quantitative Oil Injection】

Catalogue
Specification
Model CD3
Air Inlet 1/8" PS(f)
Meterial Inlet 1/4"PS(f)
Material Outlet 1/4"PS(f)
Minimum Operating Pressure Barometric Pressure  0.3MPa  (3kg)
Operating Pressure Range Lubricant   1.5~20MPa / 15kg~200kg
Operating Pressure Range Barometric Pressure  0.3 ~ 0.7 MPa / 3 ~ 7kg
Bearable Pressure on Lubricant  20 Mpa / 2000kg
Available Fluids ●Gasoline.
●Toluene.
●Diesel fuel.
●Organic solvent.
N.W. 1.4 kg
