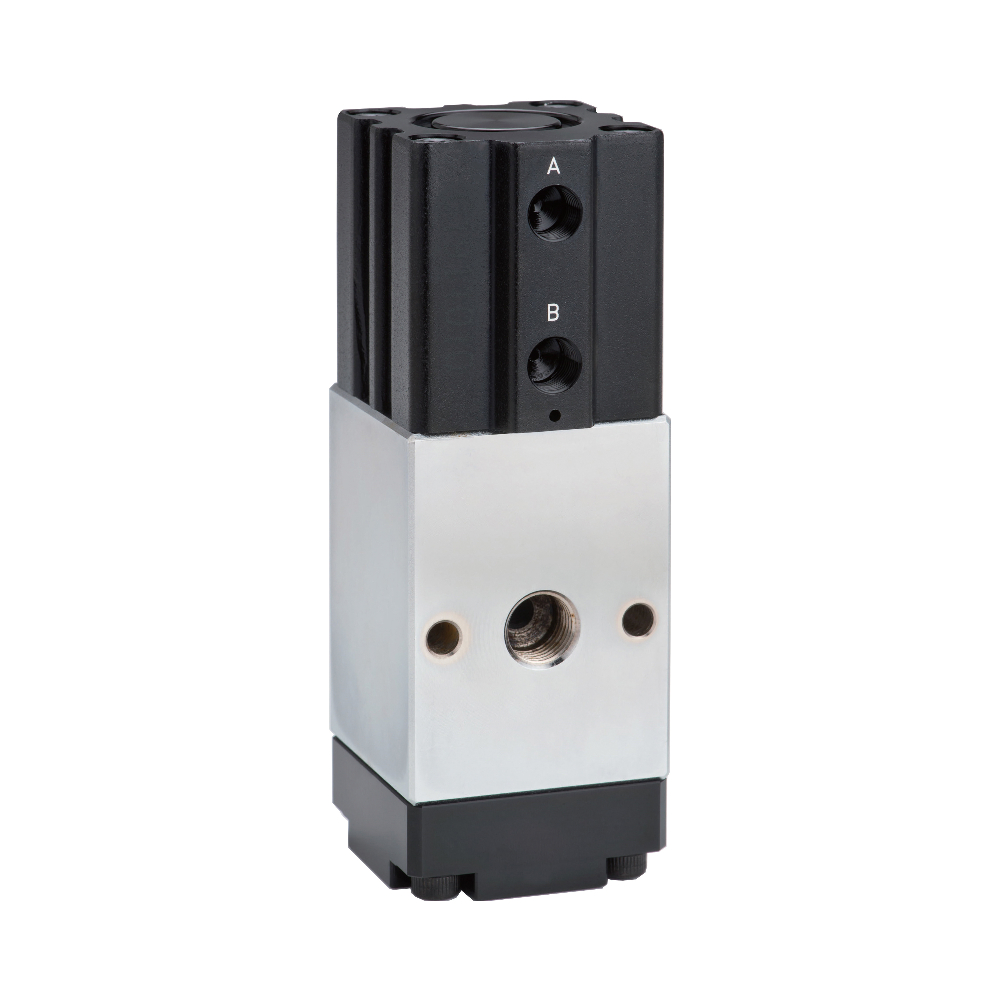

【CD3】High flow pneumatic valve
Product Description
Feature
(1) The mechanical principle is adopted to ensure long-term use. This device can be used in fluids such as lubricating oil or grease.Usage
(1) General 00#~3# grease , semi-solid or high-viscosity liquid.
(2) Engine oil, gear oil, liquid
(3) Non-gelling adhesives, free of organic solvents, no particles
(4) For special grease please contact with us.

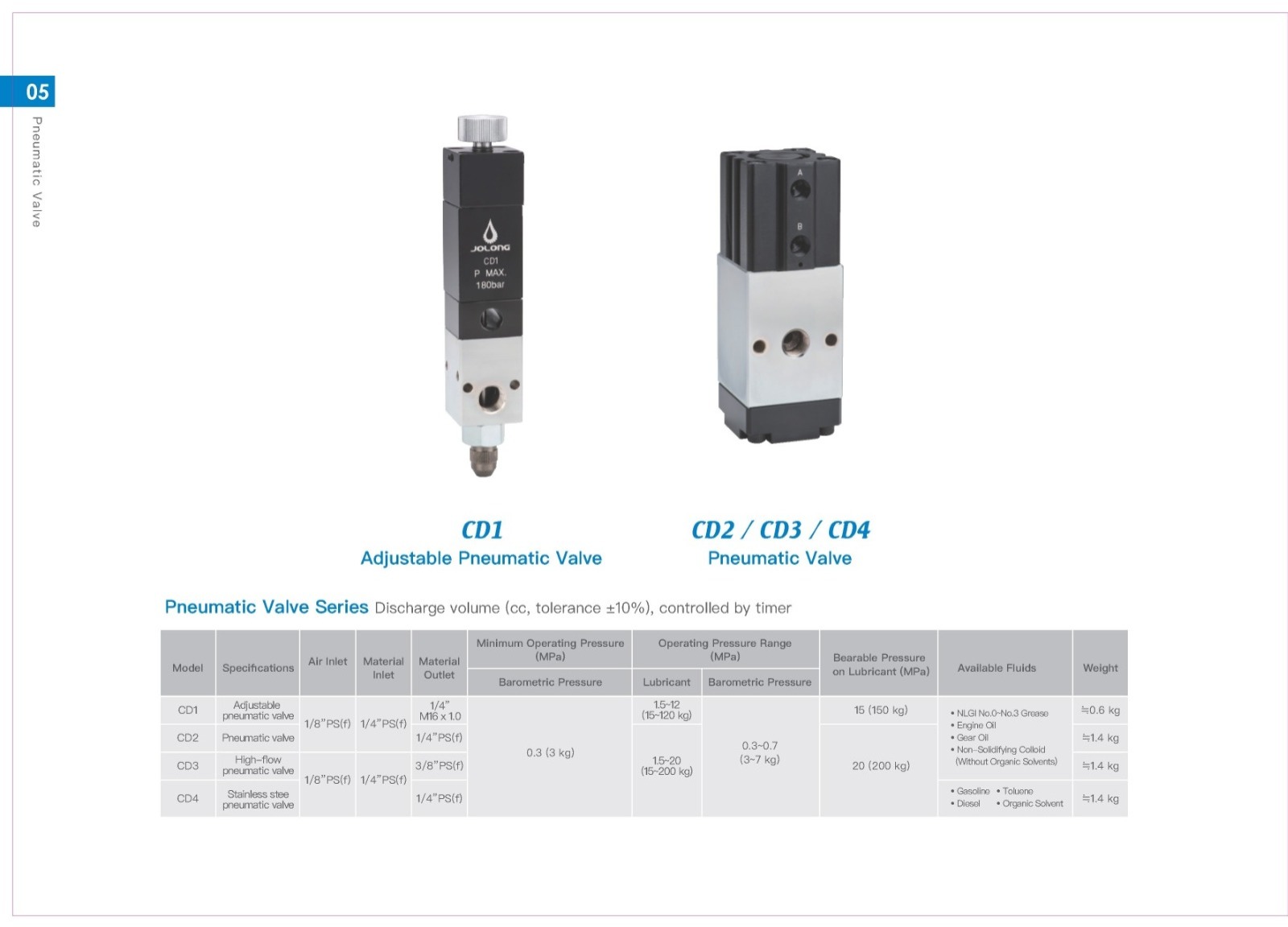

| Model | CD3 |
| Air Inlet | 1/8" PS(f) |
| Meterial Inlet | 1/4"PS(f) |
| Material Outlet | 3/8"PS(f) |
| Minimum Operating Pressure Barometric Pressure | 0.3MPa (3kg) |
| Operating Pressure Range Lubricant | 1.5~20MPa / 15kg~200kg |
| Operating Pressure Range Barometric Pressure | 0.3 ~ 0.7 MPa / 3 ~ 7kg |
| Bearable Pressure on Lubricant | 20 Mpa / 2000kg |
| Available Fluids | ●NLGI No.0~No.3 ●Engine oil ●Gear oil ●Non-solidifying colloids (Must be free of organic solvents) |
| N.W. | 1.4 kg |
Feature
(1) The mechanical principle is adopted to ensure long-term use. This device can be used in fluids such as lubricating oil or grease.Usage
(1) General 00#~3# grease , semi-solid or high-viscosity liquid.
(2) Engine oil, gear oil, liquid
(3) Non-gelling adhesives, free of organic solvents, no particles
(4) For special grease please contact with us.
| Model | CD3 |
| Air Inlet | 1/8" PS(f) |
| Meterial Inlet | 1/4"PS(f) |
| Material Outlet | 3/8"PS(f) |
| Minimum Operating Pressure Barometric Pressure | 0.3MPa (3kg) |
| Operating Pressure Range Lubricant | 1.5~20MPa / 15kg~200kg |
| Operating Pressure Range Barometric Pressure | 0.3 ~ 0.7 MPa / 3 ~ 7kg |
| Bearable Pressure on Lubricant | 20 Mpa / 2000kg |
| Available Fluids | ●NLGI No.0~No.3 ●Engine oil ●Gear oil ●Non-solidifying colloids (Must be free of organic solvents) |
| N.W. | 1.4 kg |
