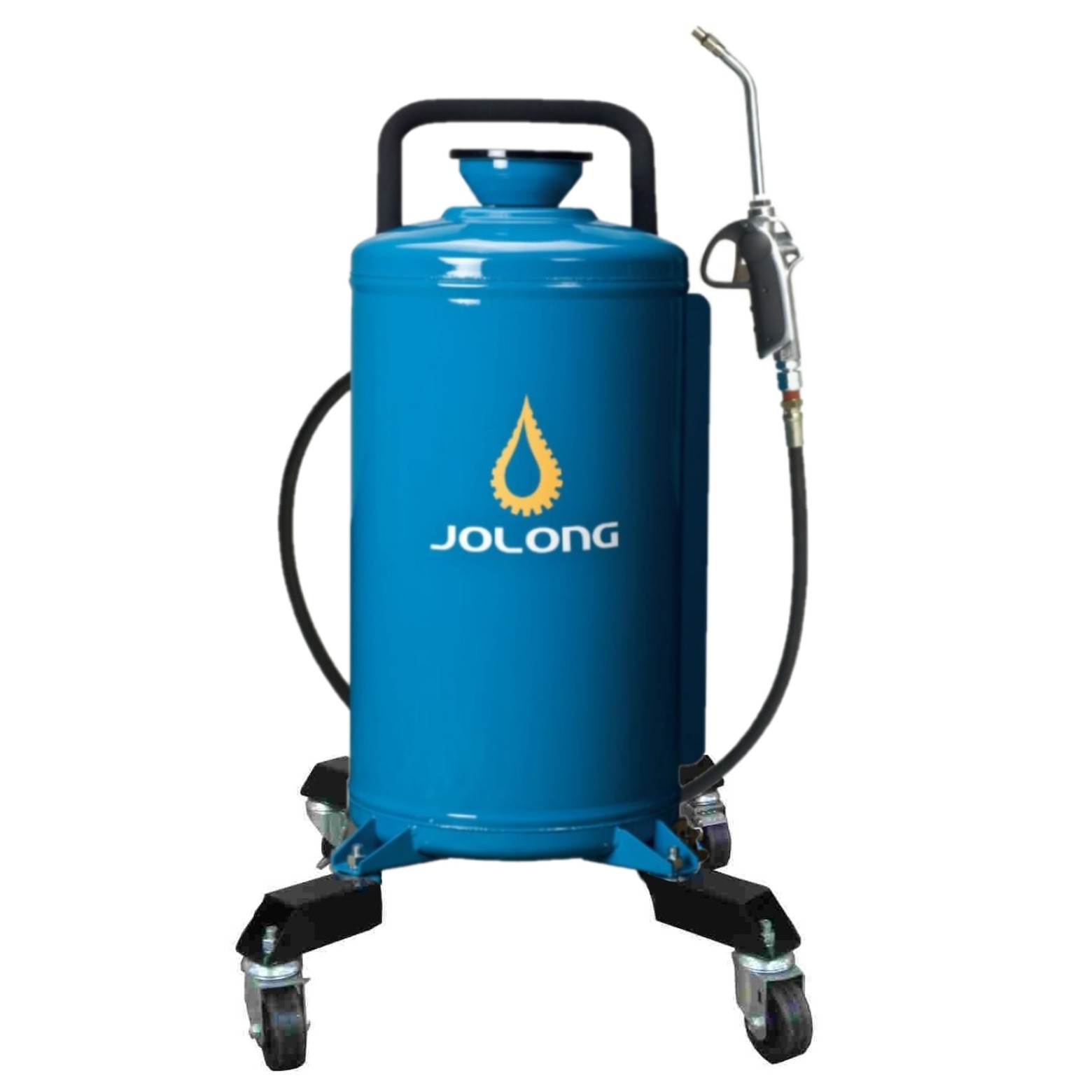

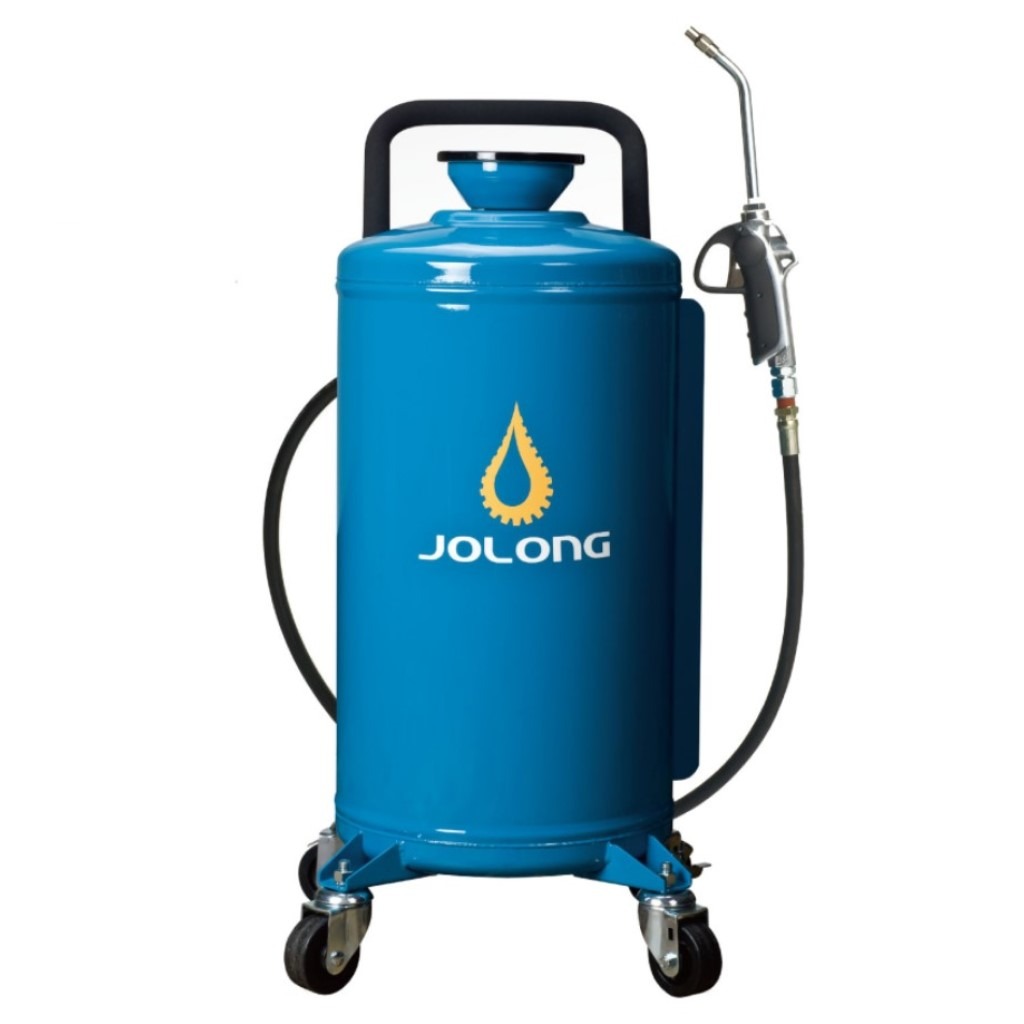

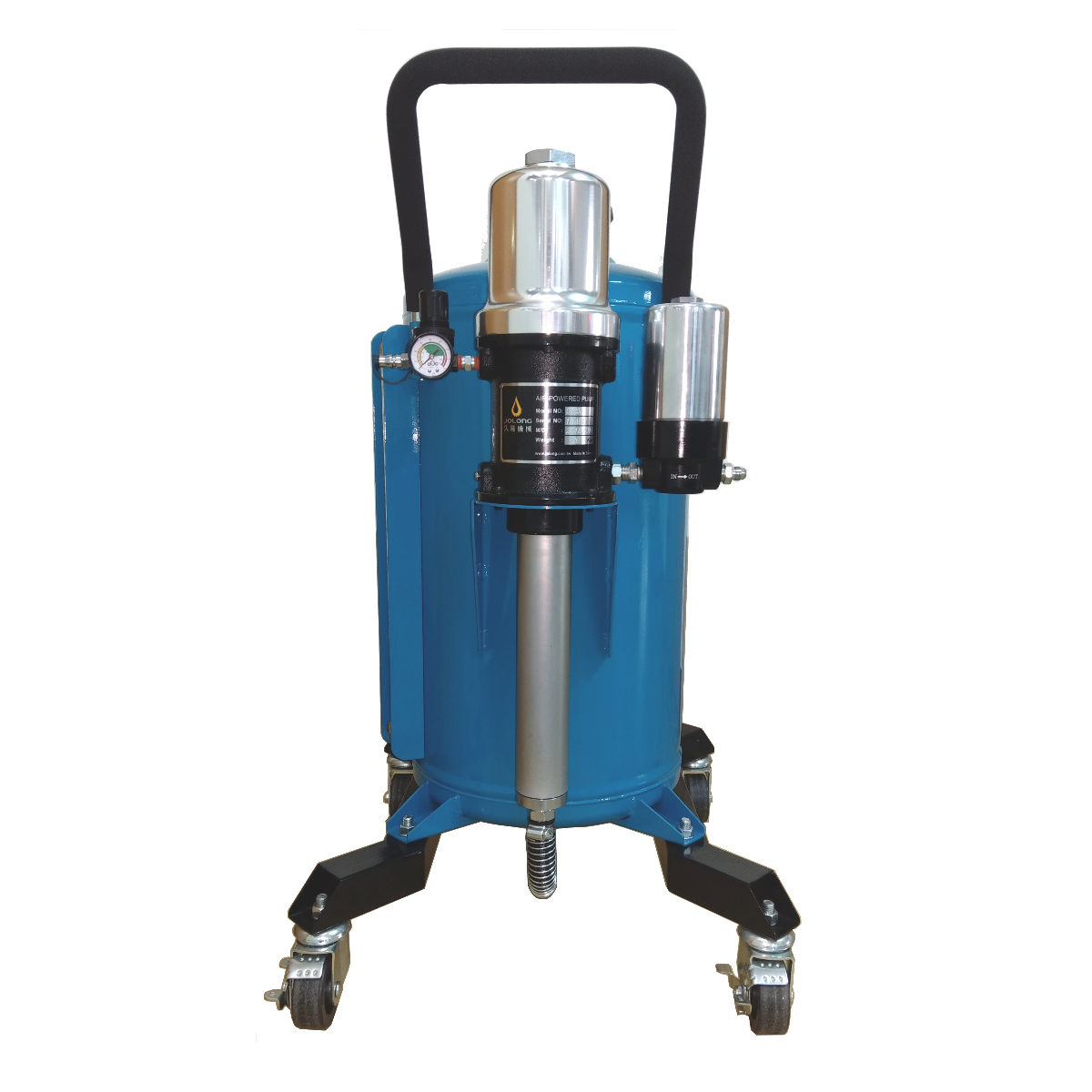

AIR OPERATED OIL PUMP OF203
Product Description
Feature
(1) Pump moves and oil suction are two separation system, it won't contaminating grease.
(2) Typically used in workshops, service stations, fleet maintenance, mining, agriculture, armed forces, construction, trains, etc.
(3) Use pneumatic pump, no need for electric power, can be used in places with flammable substances, such as, gas station, car maintenance plant etc.
(4) The pump is made of aluminum alloy.
Usage
(1) Pressure ratio 5:1 suitable to pump 0#~120# gear oil or general non-corrosive solvent.Selecting accessories
(1) If you want to know the amount of oil added, it is recommended to purchase a flow meter.
There are 3 models in total.

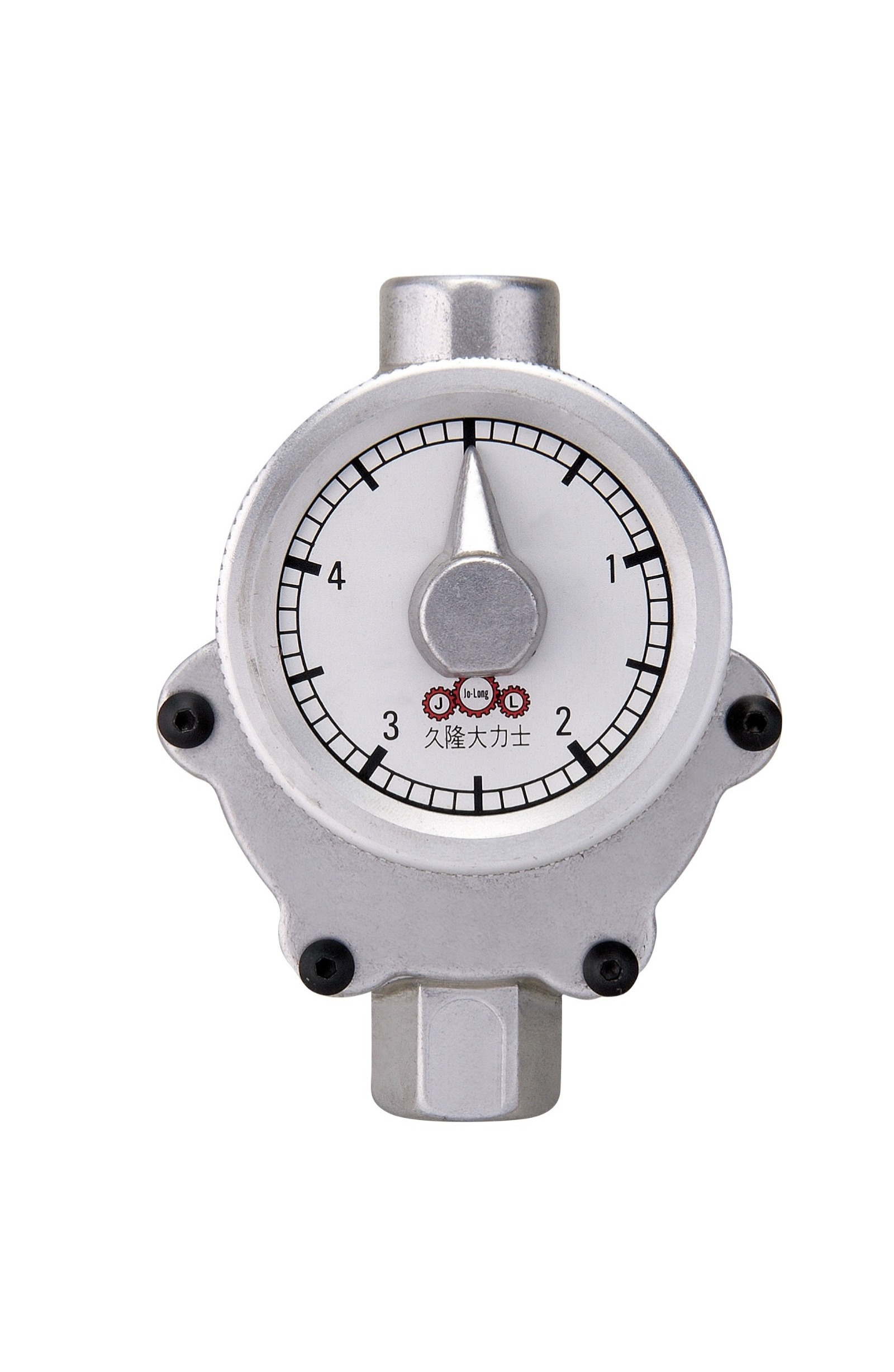

M101 (Flow meter)

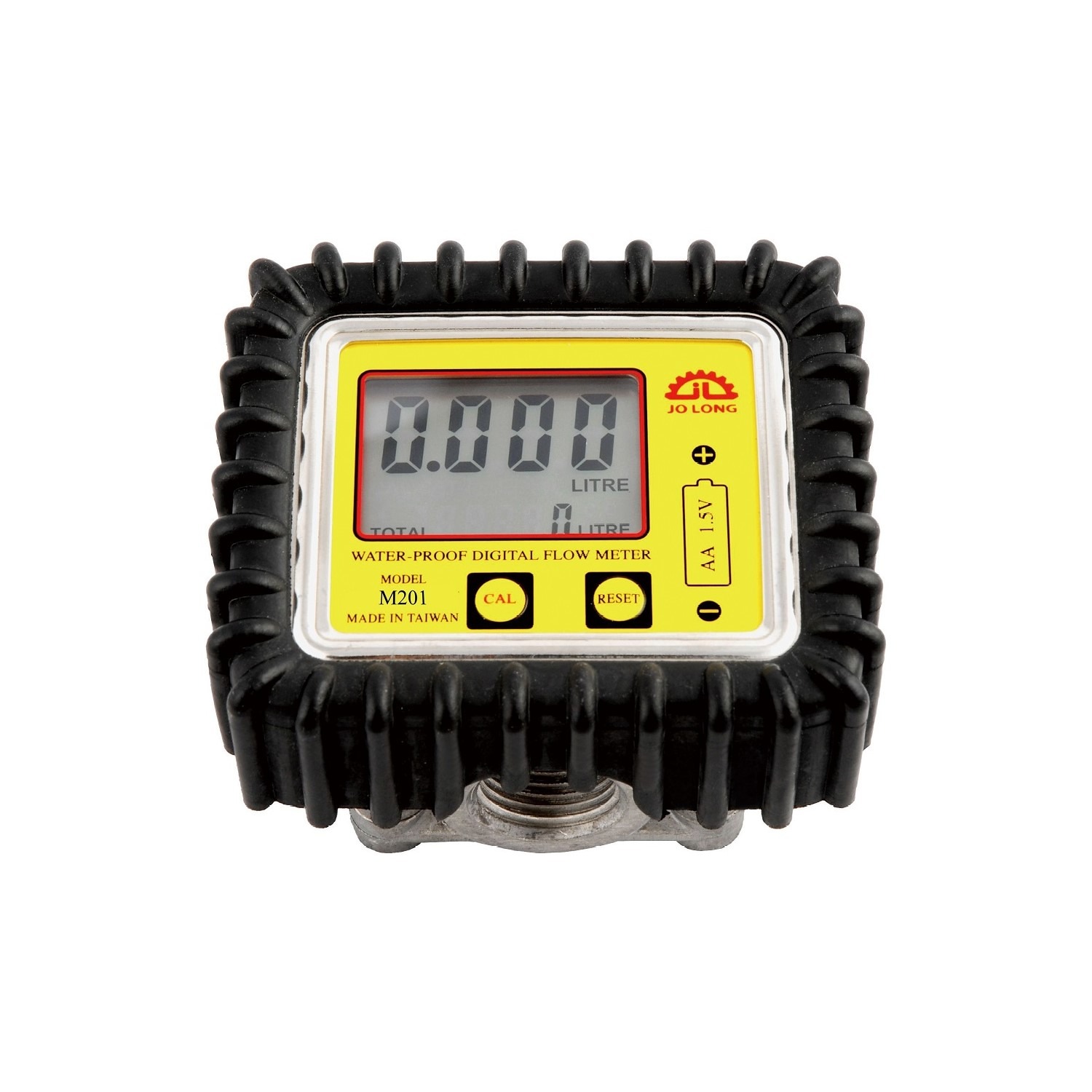

M201 (Digital flow meter)

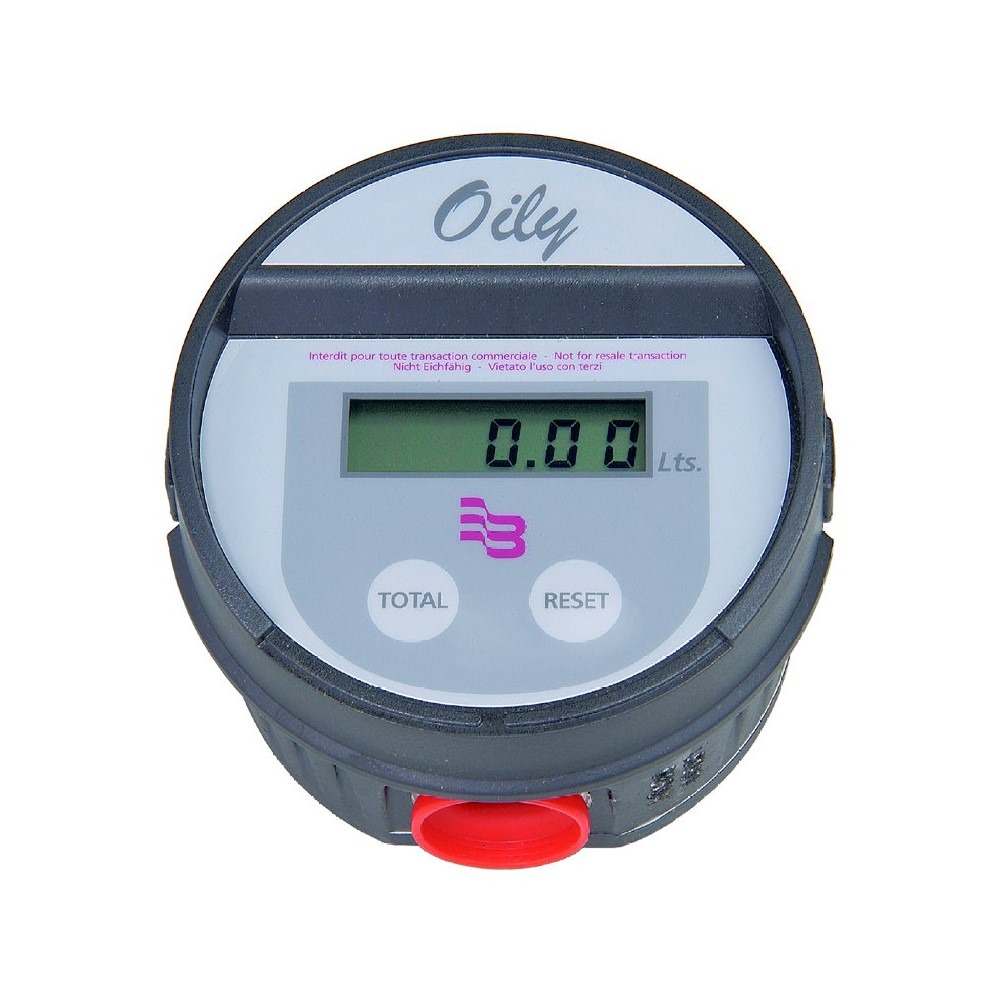

M202 (German-made digital flow meter)
| 【Analysis Table for Engine Oil Pump / Gear Oil Pump】 | ||
| Item | Engine Oil Pump | Gear Oil Pump |
| Oil viscosity | Low to medium viscosity | Medium to high viscosity |
| Viscosity range | 0# ～ 120# | 140# ～ 220# |
| ISO viscosity grade | ISO VG 32 ～ 100 | ISO VG 150 ～ 320 |
| SAE viscosity grade | SAE 0W ～ 40 | SAE 90 ～ 140 |
| Pressure ratio | 1:1 、5:1 、10:1 | 16:1 、32:1 |
| Traffic performance | Faster flow | Slower flow rate but stable output and strong force |
| Work pressure demand | Lower | Higher |
| Typical applications | Car and motorcycle engine maintenance | Transmission, differential, heavy industrial gearbox |
Selection Tips: |
||
| ✅1:1 pressure ratio: suitable for short distances and applications requiring rapid filling. | ||
| ✅5:1 pressure ratio: suitable for use in long-distance pipeline transportation. | ||
| ✅10:1 pressure ratio: suitable for use when there are differences in elevation and long-distance pipeline transportation. | ||
| ✅16:1 pressure ratio: suitable for high resistance gear oils, ensuring stable discharge even at low temperatures or high viscosity. | ||
| ✅32:1 pressure ratio: Suitable for stable discharge even under conditions of varying elevations, long distances, low temperatures, or high viscosity. | ||
| ✅ Unsure which type of oil to use? Please provide the oil model number, and we will recommend. | ||
JO LONG Co., Ltd. is established in 1976. For the earlier stage, we mainly produced professional machinery. Since 1991, we start to use our "JOLONG" trademark to produce lubricating equipment and repairing tool of automobile and motorcycle. For the past 30 years, we devote to provide good products to the industry; therefore, we obtain good reputation. Thanks for your constant support and kindness. We will continue developing related products based on the principle of best quality and service to improve the working efficiency against safe, convenient and good machinery.
Our quality policies are the quality is our number one priority, customer satisfaction and continuous improvement. Furthermore, we proceed each inspection against profession-based and data-based. We provide high quality and excellent performance product and consistent after-sales service to the domestic and international buyers and users.
Our production facilities are CNC lathes, CNC Machining centers, hydraulic press, professional, numerical and consistent production process. Our testing facilities are video measuring machine, electric microscope and others.
| Model | OF203 |
| Capacity | 60L |
| Air Input Pressure | 4 ~ 9 bar / 60 ~ 130 psi |
| Pressure Ratio | 5 : 1 |
| Oil Output Pressure | 20 ~ 45 bar / 300 ~ 650 psi |
| Deliver Rate | 140c.c / cycle |
| Hose Length | 10 ft. |
| N.W. | 29.3 kg |
| G.W. | 30.0 kg |
| CUFT | 11.2' |
Feature
(1) Pump moves and oil suction are two separation system, it won't contaminating grease.
(2) Typically used in workshops, service stations, fleet maintenance, mining, agriculture, armed forces, construction, trains, etc.
(3) Use pneumatic pump, no need for electric power, can be used in places with flammable substances, such as, gas station, car maintenance plant etc.
(4) The pump is made of aluminum alloy.
Usage
(1) Pressure ratio 5:1 suitable to pump 0#~120# gear oil or general non-corrosive solvent.Selecting accessories
(1) If you want to know the amount of oil added, it is recommended to purchase a flow meter.
There are 3 models in total.
M101 (Flow meter)
M201 (Digital flow meter)
M202 (German-made digital flow meter)
| 【Analysis Table for Engine Oil Pump / Gear Oil Pump】 | ||
| Item | Engine Oil Pump | Gear Oil Pump |
| Oil viscosity | Low to medium viscosity | Medium to high viscosity |
| Viscosity range | 0# ～ 120# | 140# ～ 220# |
| ISO viscosity grade | ISO VG 32 ～ 100 | ISO VG 150 ～ 320 |
| SAE viscosity grade | SAE 0W ～ 40 | SAE 90 ～ 140 |
| Pressure ratio | 1:1 、5:1 、10:1 | 16:1 、32:1 |
| Traffic performance | Faster flow | Slower flow rate but stable output and strong force |
| Work pressure demand | Lower | Higher |
| Typical applications | Car and motorcycle engine maintenance | Transmission, differential, heavy industrial gearbox |
Selection Tips: |
||
| ✅1:1 pressure ratio: suitable for short distances and applications requiring rapid filling. | ||
| ✅5:1 pressure ratio: suitable for use in long-distance pipeline transportation. | ||
| ✅10:1 pressure ratio: suitable for use when there are differences in elevation and long-distance pipeline transportation. | ||
| ✅16:1 pressure ratio: suitable for high resistance gear oils, ensuring stable discharge even at low temperatures or high viscosity. | ||
| ✅32:1 pressure ratio: Suitable for stable discharge even under conditions of varying elevations, long distances, low temperatures, or high viscosity. | ||
| ✅ Unsure which type of oil to use? Please provide the oil model number, and we will recommend. | ||
JO LONG Co., Ltd. is established in 1976. For the earlier stage, we mainly produced professional machinery. Since 1991, we start to use our "JOLONG" trademark to produce lubricating equipment and repairing tool of automobile and motorcycle. For the past 30 years, we devote to provide good products to the industry; therefore, we obtain good reputation. Thanks for your constant support and kindness. We will continue developing related products based on the principle of best quality and service to improve the working efficiency against safe, convenient and good machinery.
Our quality policies are the quality is our number one priority, customer satisfaction and continuous improvement. Furthermore, we proceed each inspection against profession-based and data-based. We provide high quality and excellent performance product and consistent after-sales service to the domestic and international buyers and users.
Our production facilities are CNC lathes, CNC Machining centers, hydraulic press, professional, numerical and consistent production process. Our testing facilities are video measuring machine, electric microscope and others.
| Model | OF203 |
| Capacity | 60L |
| Air Input Pressure | 4 ~ 9 bar / 60 ~ 130 psi |
| Pressure Ratio | 5 : 1 |
| Oil Output Pressure | 20 ~ 45 bar / 300 ~ 650 psi |
| Deliver Rate | 140c.c / cycle |
| Hose Length | 10 ft. |
| N.W. | 29.3 kg |
| G.W. | 30.0 kg |
| CUFT | 11.2' |
