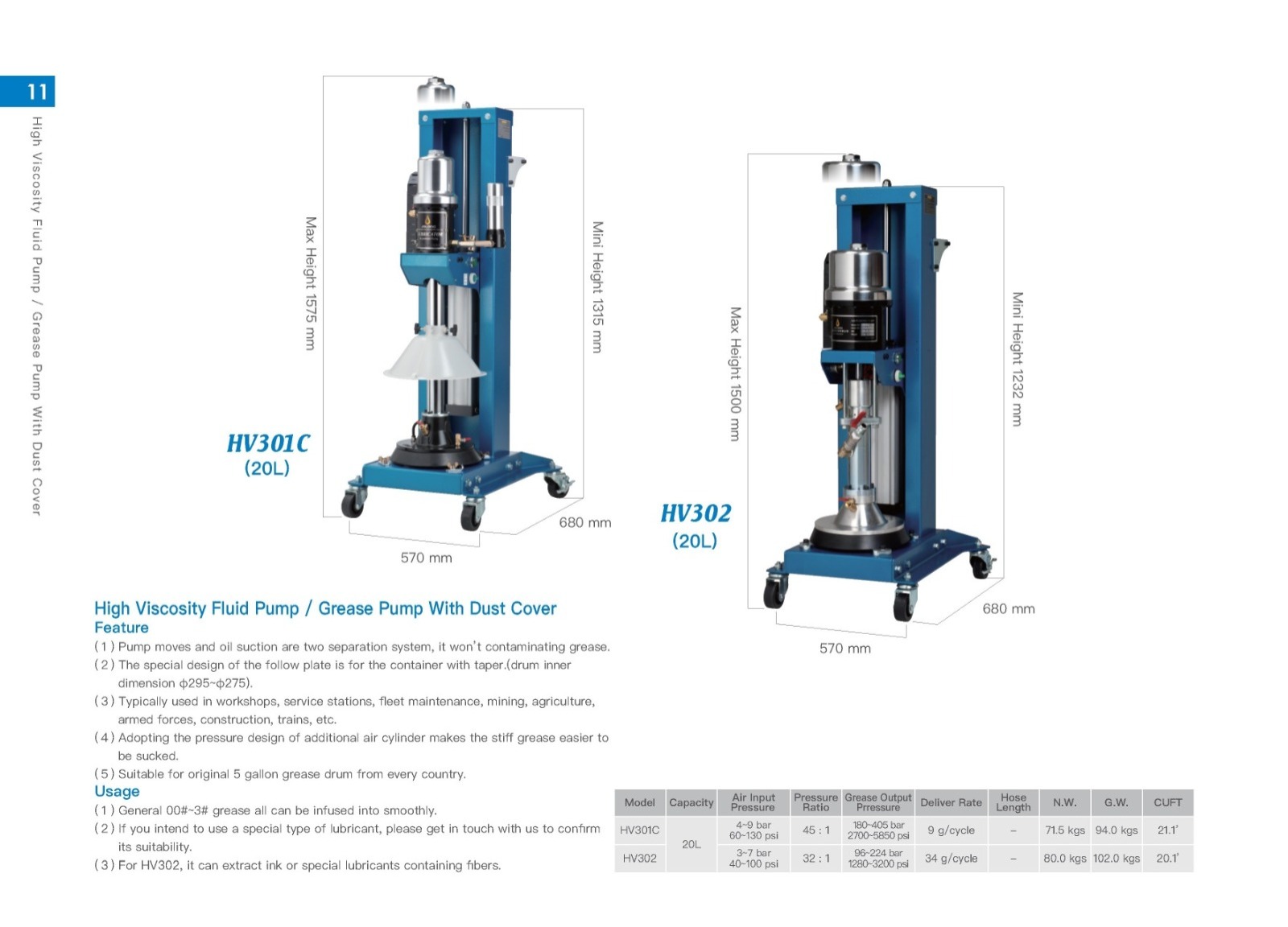

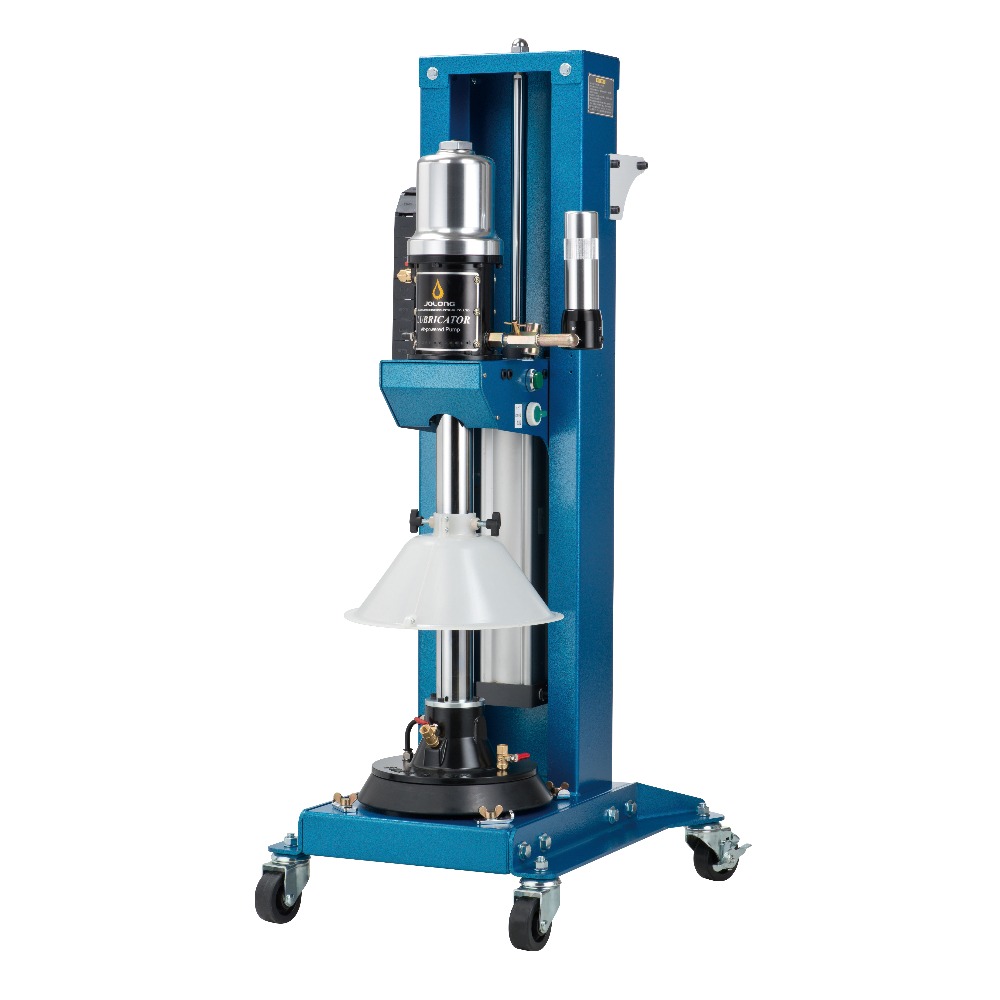

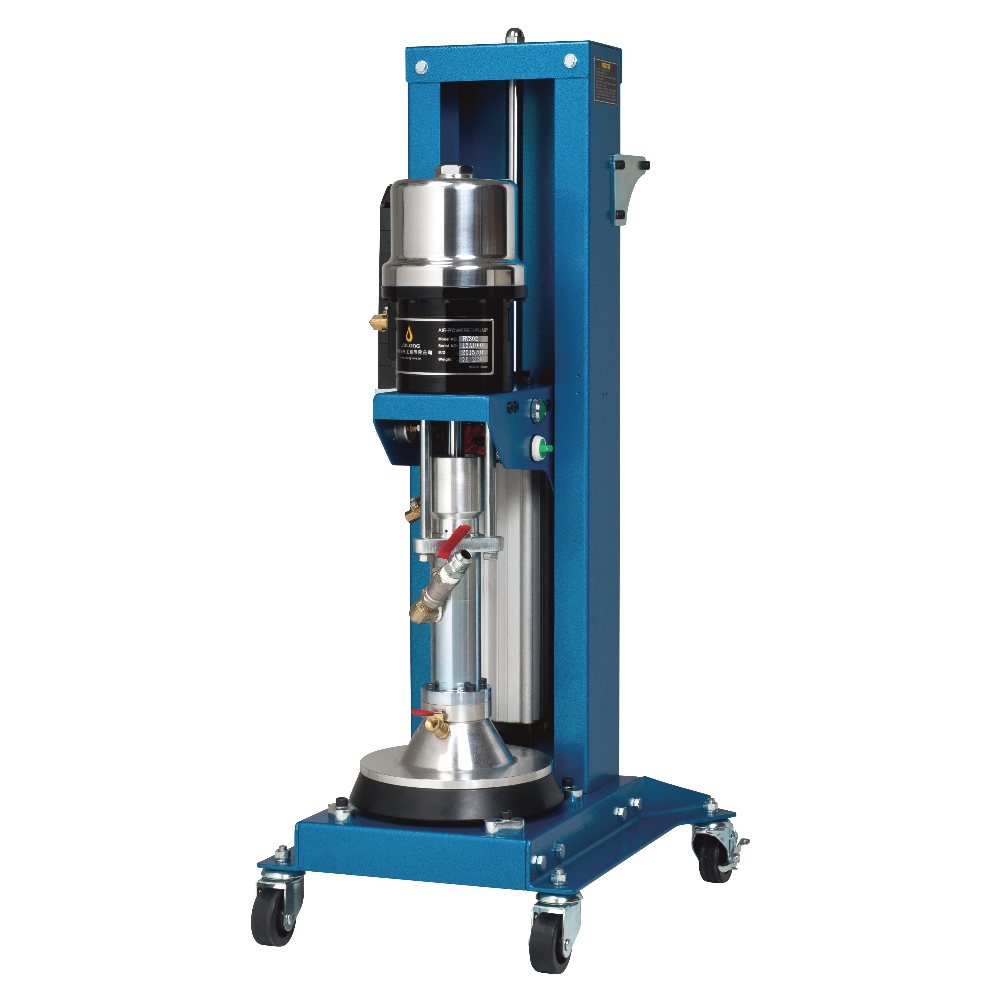

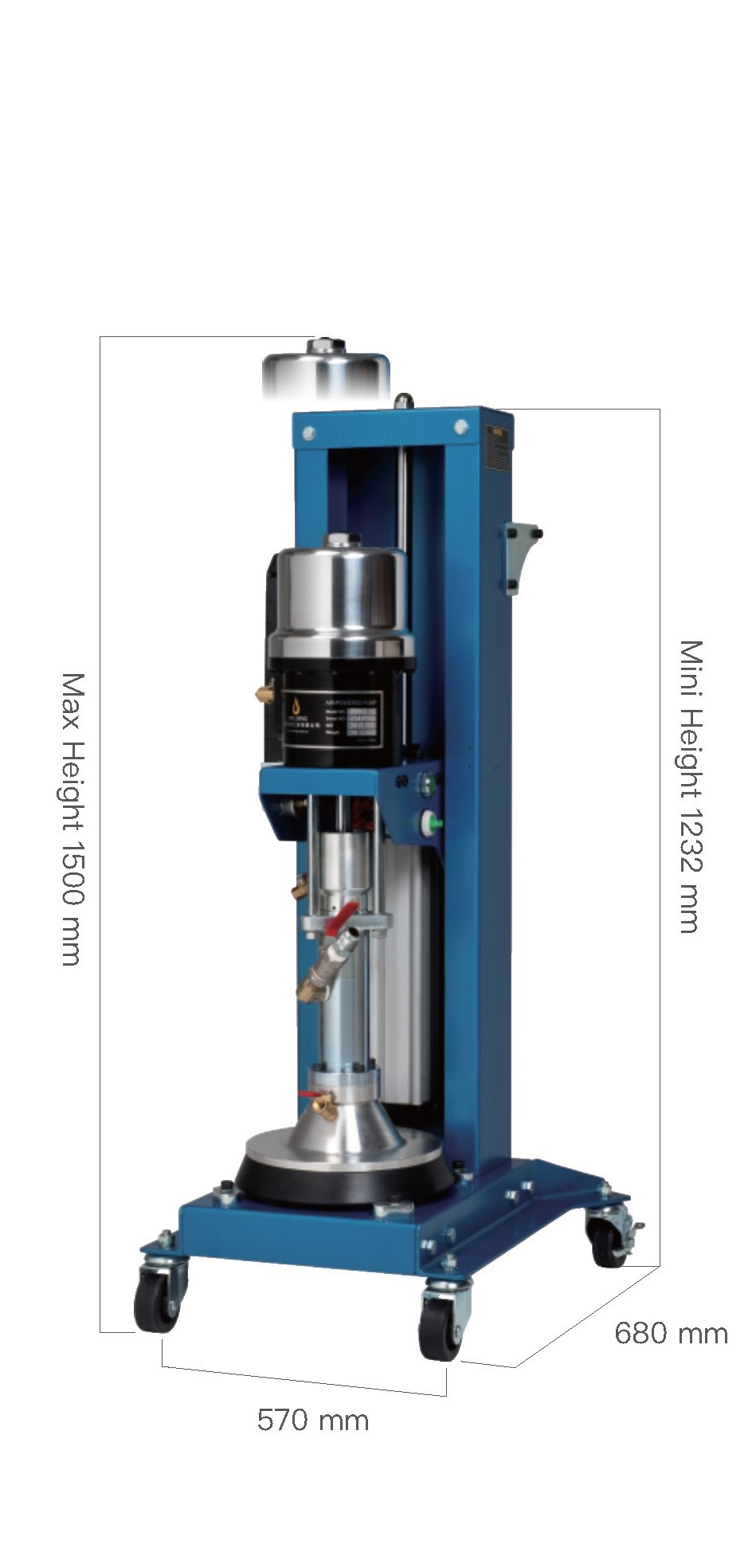

HIGH VISCOSITY FLUID PUMP / GREASE PUMP HV302
Product Description
Feature
(1) Pump moves and oil suction are two separation system, it won't contaminating grease.
(2) The special design of the follow plate is for the container with taper.(drum inner dimension Ø295~Ø275).
(3) Typically used in workshops, service stations, fleet maintenance, mining, agriculture, armed forces, construction, trains, etc.
(4) Adopting the pressure design of additional air cylinder makes the stiff grease easier to be sucked.
(5) Suitable for original 5 gallon grease drum from every country.
(6) The pump is made of aluminum alloy by forging.
(7) The production line can transport fluids lateral for up to 40 meters.
Usage
(1) General 00#~3# grease all can be infused into smoothly.
(2) For special grease please contact with us.
(3) Special greases such as shield tail oil or ink can be applied.

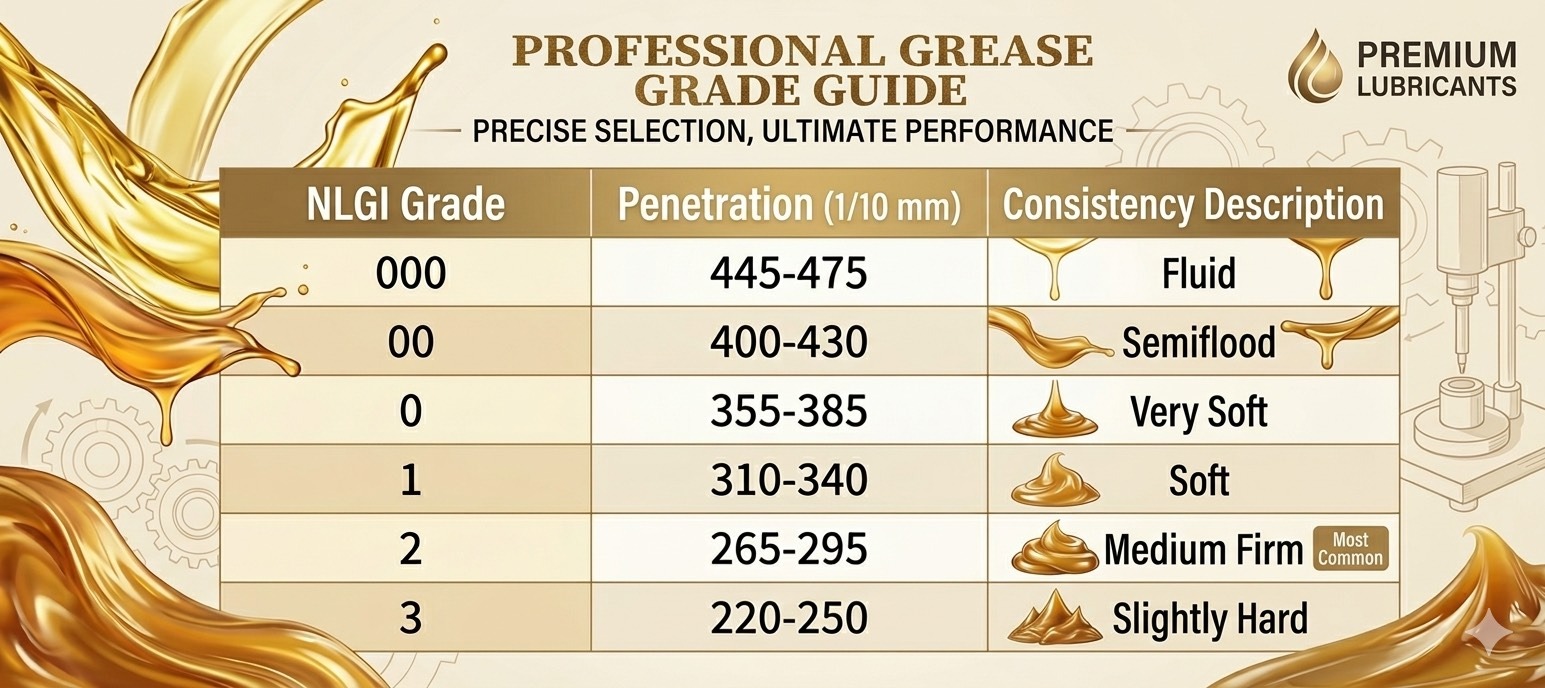

✅The key to determining this is the NLGI consistency grade of the lubricating oil.
Proper use of the pressure plate ensures smooth oil extraction and prevents the pump from running dry.
✅NLGI #00, #0 (semi-flow, extremely soft): No need to use
The oil has good fluidity and can flow to the pump inlet on its own.
✅NLGI #1 (soft, paste): Add as needed depending on environmental conditions. Generally, it is not required.
Special Note: If operating in winter or low-temperature environments, the oil may harden due to temperature drop. It is recommended to install a pressure plate to maintain a stable oil supply.
✅NLGI #2 (Medium consistency): Must be used
This grade of oil has lost its fluidity to automatically flow to the suction inlet. Please be sure to install a pressure plate to avoid creating voids (air locks) that could cause pump malfunction.
✅NLGI #3 (High viscosity, firm texture): Requires increased pressure support.
If a regular pump is difficult to extract the material, it is recommended to use an HV series pressure pump, which uses a pneumatic cylinder to apply strong downward pressure.
✅If you require extraction of high-viscosity oils, please contact our technical team directly.
(1)Without pressure plate. It will be hollow after sucking and also not easy to suck.

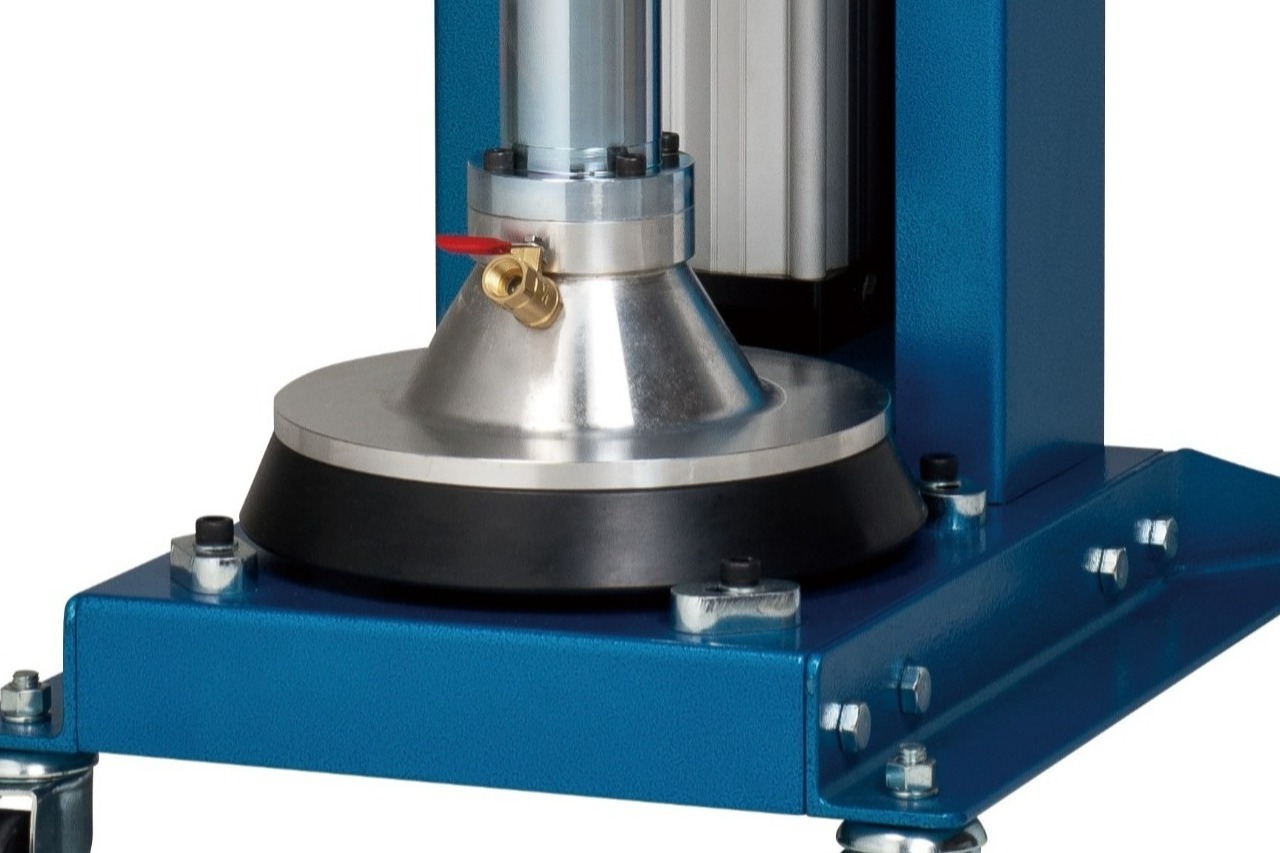

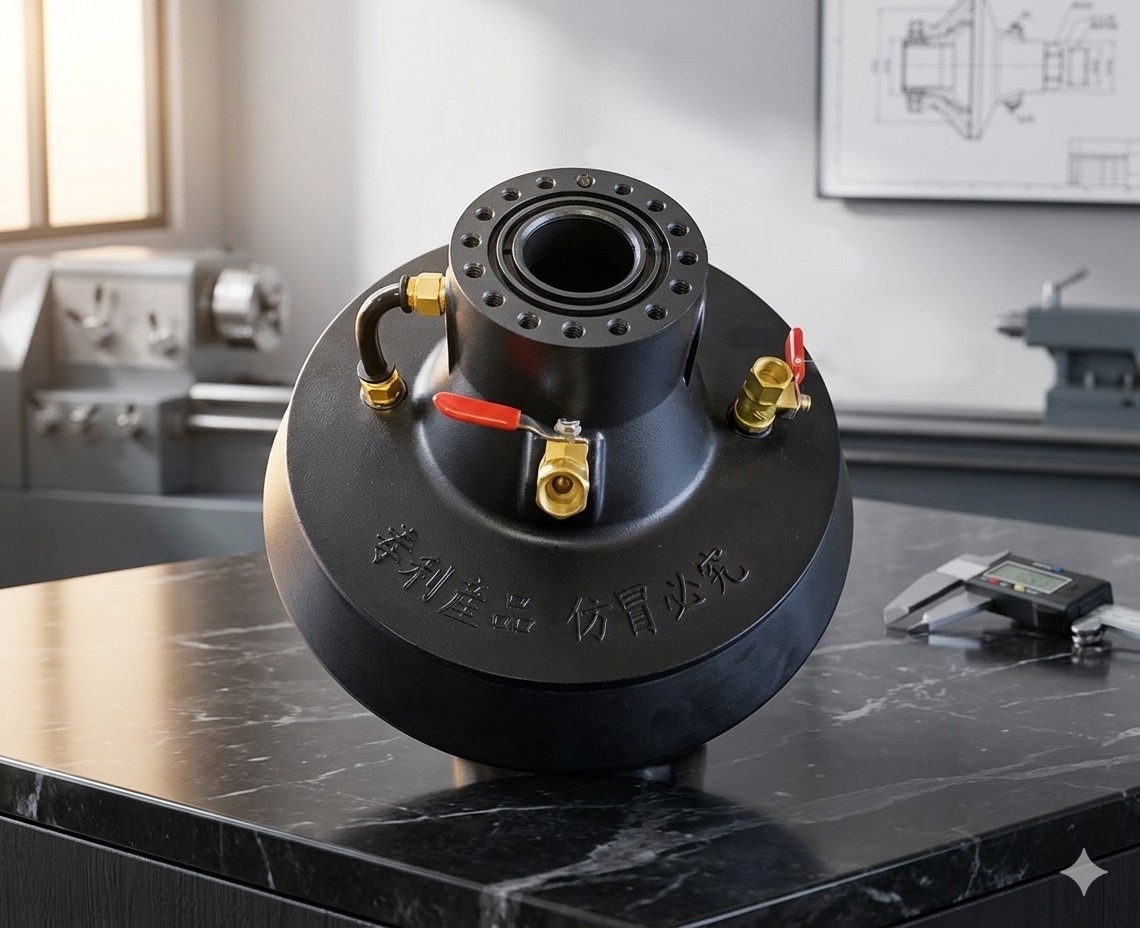

(2)A pressure plate is used. The grease can be sucked evenly and smoothly with follower plate.
JO LONG Co., Ltd. is established in 1976. For the earlier stage, we mainly produced professional machinery. Since 1991, we start to use our "JOLONG" trademark to produce lubricating equipment and repairing tool of automobile and motorcycle. For the past 30 years, we devote to provide good products to the industry; therefore, we obtain good reputation. Thanks for your constant support and kindness. We will continue developing related products based on the principle of best quality and service to improve the working efficiency against safe, convenient and good machinery.
Our quality policies are the quality is our number one priority, customer satisfaction and continuous improvement. Furthermore, we proceed each inspection against profession-based and data-based. We provide high quality and excellent performance product and consistent after-sales service to the domestic and international buyers and users.
Our production facilities are CNC lathes, CNC Machining centers, hydraulic press, professional, numerical and consistent production process. Our testing facilities are video measuring machine, electric microscope and others.
| Model | HV302 |
| Capacity | 20L |
| Air Input Pressure | 3 ~ 7 bar / 40 ~ 100 psi |
| Pressure Ratio | 32 : 1 |
| Grease Output Pressure | 96 ~ 224 bar / 1280 ~ 3200 psi |
| Deliver Rate | 34 g / cycle |
| Hose Length | - |
| N.W. | 80 kg |
| G.W. | 102 kg |
| CUFT | 20.1' |
