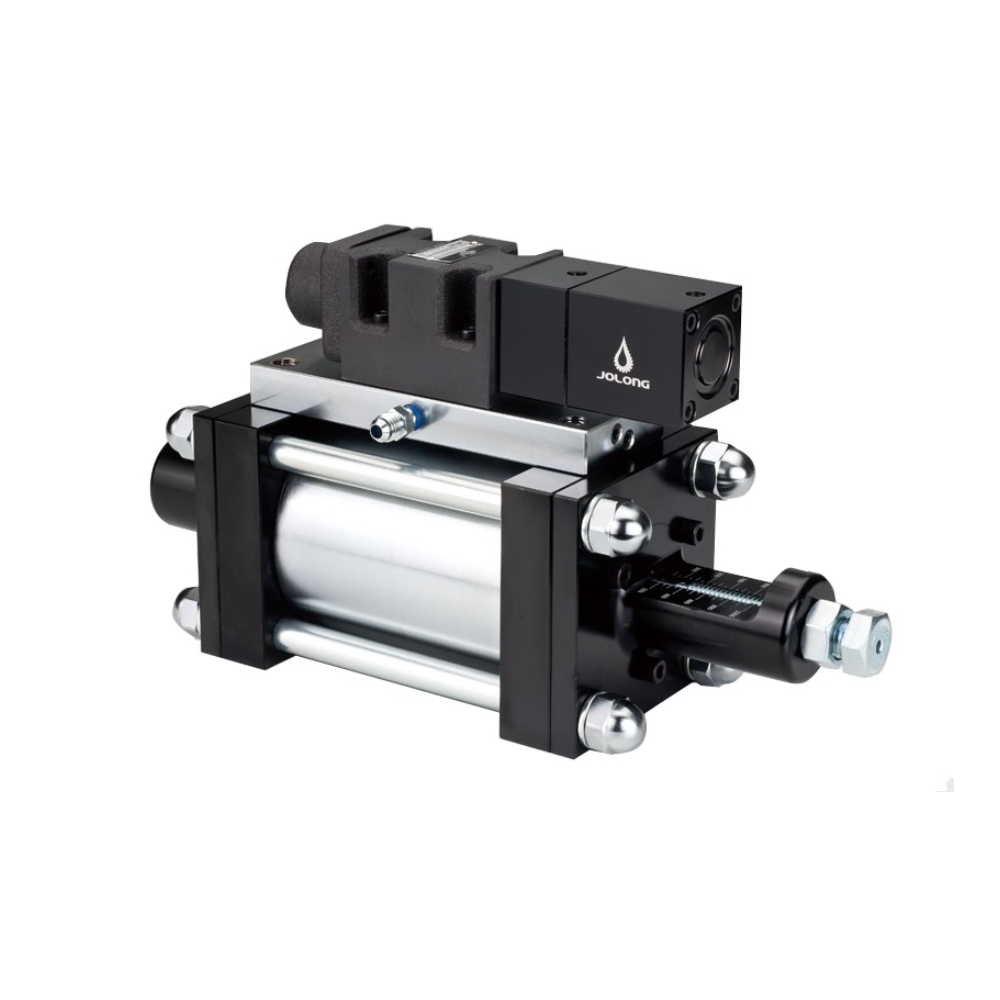

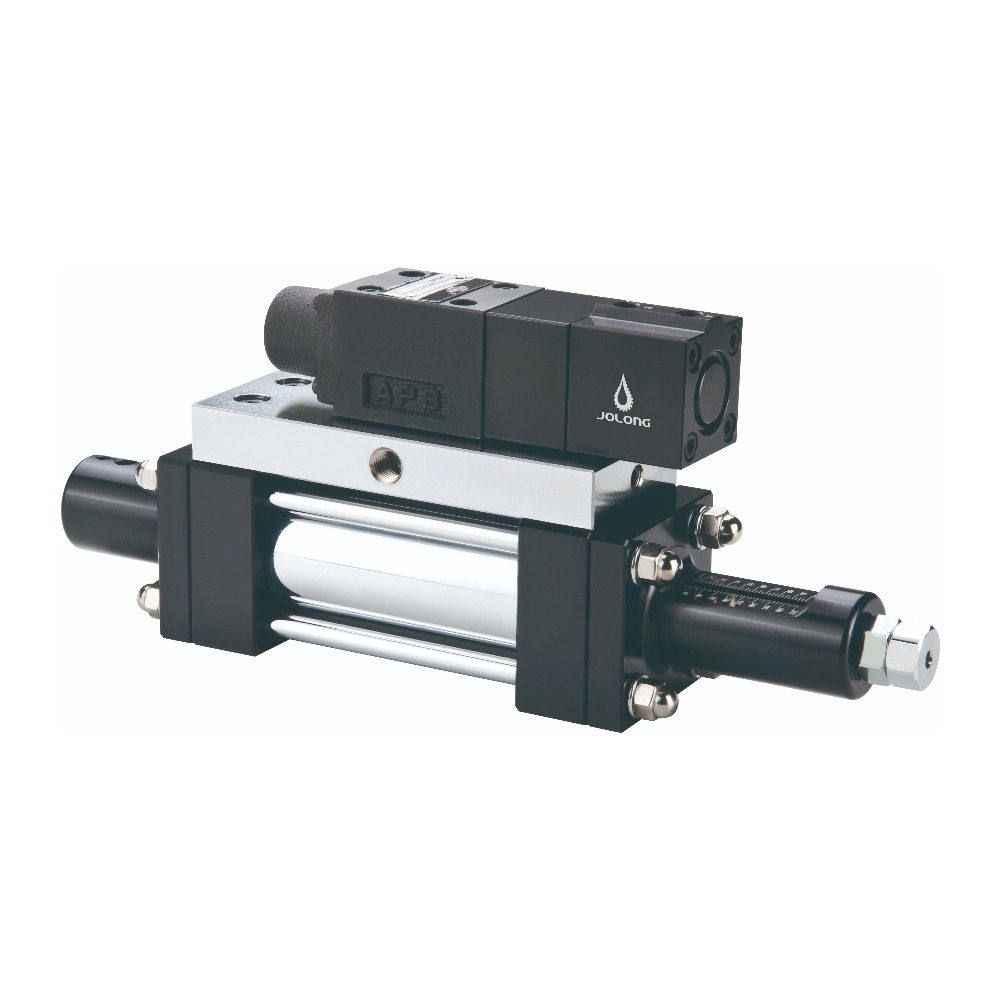

【BD1000】1000c.c. PRECISE DISPENSER
Product Description
Feature
(1) Able to fit together with sensor, provide the inspection functions of oil back-up finishing and oil output finishing.Usage
(1) General 00#~3# grease , semi-solid or high-viscosity liquid.
(2) Engine oil, gear oil, liquid.
(3) Non-gelling adhesives, free of organic solvents, no particles.
(4) For special grease please contact with us.
| Model | BD1000 |
| Dispensing volume (cm3/stroke)(±1%~2%) | 200 c.c~1000 c.c |
| Minimum operating pressure Lubricant | 4.9MPa / 50kg |
| Minimum operating pressure Barometric pressure | 0.3MPa / 3kg |
| Operating pressure range Lubricant | 4.9~9.8MPa / 50kg~100kg |
| Operating pressure range Barometric pressure | 0.3~0.7MPa / 3kg~7kg |
| Bearable pressure on lubricant | 11.8MPa / 120kg |
| Grease range | ●NLGI No.0~No.3 ●Engine oil ●Gear oil ●Non-solidifying colloids (Must be free of organic solvents) |
| N.W. | 22kg |
Feature
(1) Able to fit together with sensor, provide the inspection functions of oil back-up finishing and oil output finishing.Usage
(1) General 00#~3# grease , semi-solid or high-viscosity liquid.
(2) Engine oil, gear oil, liquid.
(3) Non-gelling adhesives, free of organic solvents, no particles.
(4) For special grease please contact with us.
| Model | BD1000 |
| Dispensing volume (cm3/stroke)(±1%~2%) | 200 c.c~1000 c.c |
| Minimum operating pressure Lubricant | 4.9MPa / 50kg |
| Minimum operating pressure Barometric pressure | 0.3MPa / 3kg |
| Operating pressure range Lubricant | 4.9~9.8MPa / 50kg~100kg |
| Operating pressure range Barometric pressure | 0.3~0.7MPa / 3kg~7kg |
| Bearable pressure on lubricant | 11.8MPa / 120kg |
| Grease range | ●NLGI No.0~No.3 ●Engine oil ●Gear oil ●Non-solidifying colloids (Must be free of organic solvents) |
| N.W. | 22kg |
